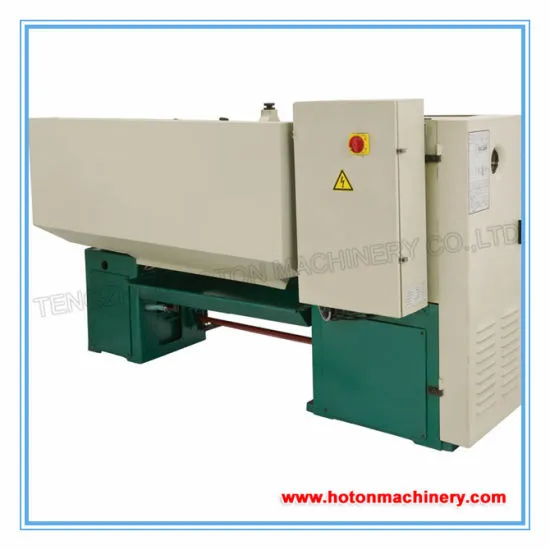

Factory direct sale horizontal gap bed lathe machine CD6240C CD6250C CD6260C

Product Description

CDC Series Large Spindle Hole Precision Lathe
Over sized spindle bore of 80mm
Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand.
Outward appearance of machine features large plains, making the machine more good-looking
Gapped bed ways, which are super-audio frequency hardened (HB450 plus).
All gears hardened and ground by Reishauer grinding machine.
Leadscrew and feed-rod interlocked, both with overload protection.
Automatic feed stopper.
Configuration variable totally according to orders:
Metric or inch system; Right or left hand wheel; Halogen lamp; Quick change; Tool post; DRP;
T-slot compound; Chuck guard; Leadscrew hood; Rapid traverse motor; Electromagnetic brake;
Forced lubrication system.
SPECIFICATIONS:

MODEL		CD6240C	CD6250C			CD6260C
CAPACTIES	Max. swing over bed mm	400	500			600
	Max. swing over cross slide mm	225	325			360
	Max. swing in gap mm	530	630			730
	Center distance	1000,1500, 2000mm
	Cross slide travel mm	330mm
SPINDLE	Spindle hole	80mm
	Spindle nose	ISO-C8 or ISO-D8
	Spindle taper	Metric 85mm
	Spindle speeds	24-1600rpm (15 Steps)
FEEDS	Metric threads range (Kinds)	0.5-28mm (66Kinds)
	Inch threads range (Kinds)	1-56tpi (66 Kinds)
	Module threads range (Kinds)	0.5-3.5mm (33 Kinds)
	Diametral threads range (Kinds)	8-56 DP (33 Kinds)
	Longitudinal feeds range(kinds)	0.072-4.038mm/reV (0.0027-0.15inch/rev)(66kinds)
	Cross feeds range (kinds)	0.036-2.019mm/reV (0.0013-0.075nch/rev)(66kinds)
	Rapid traveling speed of carriage	5m/min(16.4ft/min)
	Leadscrew size:Diameter pitch	35mm/6mm or 35mm
CARRIAGE	Cross slide travel	300mm
	Compound rest travel	130mm
	Cross-section size of tool shank	25x25mm
TAILSTOCK	Spindle diameter	65mm
	Spindle taper	Morse No. 5
	Spindle travel	120mm
Main motor	Main drive motor	4.0kw or 5.5kw				7.5kw
	Coolant pump motor	0.125kw
	Rapid traverse motor	0.12kw
Net weight/Gross weight(kg)	1000mm	1640/2290		1700/2350	1800/2500
	1500mm	1850/2250		1910/2610	2010/2760
	2000mm	2090/2860		2150/2920	2250/3070
PACKING SIZE (L*W*D)	1000mm	2420*1150*1800mm
	1500mm	2920*1150*1800mm
	2000mm	3460*1150*1800mm

Contact Us:

Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
