US$30.00-78.00
|
2 Pieces
(MOQ)
|
Basic Info.
Cone
Paper with UK Coating
Spider
USA Material Spider
Voice Coil
Copper in/out Fiberglass Bobbin
Transport Package
Strong Carton
Specification
Shipping Weight ( 1 unit) 15 kg
Production Capacity
3000/Month
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 23.50cm
Package Gross Weight
19.400kg
Product Description
You didn't just buy speakers here, you also buy our quality controlled ability , we produce with Tai wan and UK glue, copper in/out voice coil with fiberglass bobbin to proof high temperature and TAI WAN material spider more stablity, reliablity. You will be away from headache quality complains.
Ruizheng Speakers primary line consists of high frequency drivers and coaxial components, and cone drivers. We have made a strong commitment to provide a well-balanced line of Low Frequency drivers that range from 6.5" to 24", as well as a very complete line of High Frequency drivers. Our engineers have optimized each design with CLIO software to ensure each design operates to its fullest potential time and time again. From nightclubs, to stadiums, to concert halls around the world, our products are chosen based on their reliability, consistency and most of all for their outstanding sound quality.
https://ruizhengsound.en.made-in-china.com/product/FOPGYuMAgRVp/China-15inch-Loose-Magnetic-Material-Punchful-Bass-Sound-Bar-Speaker.html

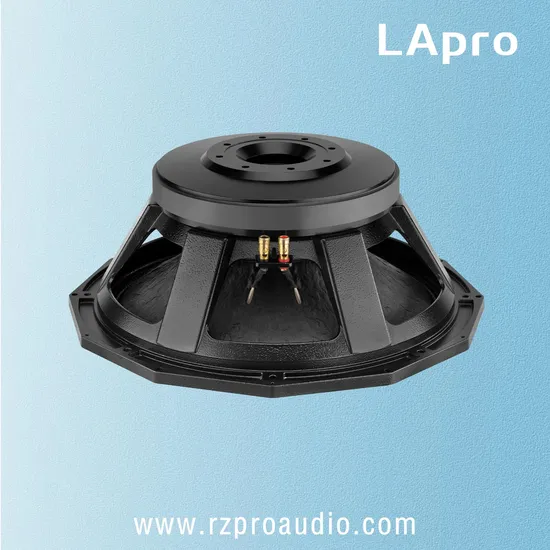

| MODEL S18WF12510 |
| | | | | |
| | | | | |
| Specifications | | Thiele Small Parameters |
| TYPE | Subwoofer | | Fs | 31 Hz |
| Nominal Diameter | 465 mm/18 in | | Re | 5.7ohm |
| Rated impedance | 8 ohm | | Qms | 9.5593 |
| Nominal (AES) | 1200 W | | Qes | 0.3175 |
| Continuous Program | 2400 W | | Qts | 0.3073 |
| Sensitivity(1w/1m) | 97dB | | Vas | 223L |
| Frequency Range | 31Hz-1500Hz | | Sd | 0.1244 m2 |
| Voice Coil Diameter | 125 mm/5 in | | Mms | 243G |
| Voice Coil Material | Copper out/in | | BI | 30 T.M |
| | | | | |
| Mounting lnformation | | Shipping lnformation |
| Overall Diameter | φ487*471mm/φ19.2*φ18.5 in | | Net Weight ( 1 unit) | 17.5 kg |
| Bolt Circle Diameter | φ470 mm/φ18.5 in | | Shipping Weight ( 1 unit) | 19.4 kg |
| Mount Baffle Cut-out | φ416 mm/φ16.4 in | | Package Size ( 1 unit) | 50x50x23.5cm |
| Depth | 193 mm/7.6 in | | | |
| Bolt Hole Diameter | 8-7mm/8-0.28 in | | | |
Founded in 2011, ruizheng audio is designing and distributing amplifier, speakers, supplying OEM/ODM components to many of the professional audio brands in the market today.
>>
