Wtvo-1.9 10 Shelves Bho Vacuum Ovens for Extraction

Product Description

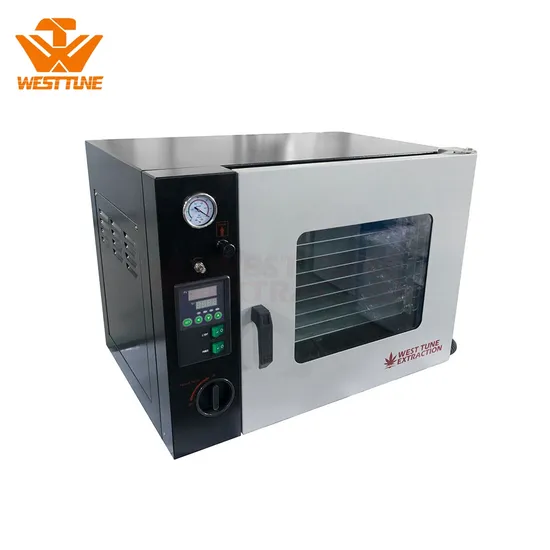

WTVO-1.9 10 Shelves BHO Vacuum Ovens for Extraction
West Tune vacuum ovens are specially designed for degassing or purification of essential oil extracts. Using the technique of cold boiling, the oven works in a delicate ambient temp. heat atmosphere under reduced pressure conditions to expedite solvent degassing while perfectly preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-production, and easy operation.
Product Details:
Featrues:
- 4sides heating, distribute the heat uniformly under vacuum
- Temp stability reach to +/- 1 degree F
- Dual layer tempered glass door for clear observation
- High quality temperature PID controller, LED display
- Stainless steel working chamber
- Five removable aluminum shelves
- 110 Volt, 60 Hz, US standard plug
- Has been factory tested under vacuum for more than 24hr(English test report is available)
Specifications:

Voltage	110V/60Hz NEMA 5-15p cable
Power	600W
Heating	4 sides heating (left, right, top, bottom)
Temperature Range	RT+ 20~150 ºF
Temperature Stability	±1ºF
Dispaly type	LED
Display Resolution	0.1ºF
Chamber Material	Stainless Steel
Chamber Dimensions (LxWxH)	16.5" x 14.5" x 13.8"
Ultimate vacuum level	0.039 in. Hg
Shelf qty	10 removable aluminum shelves
Shelf Dimensions (LxW)	16.4" x 14.4"
Shelf Capacity	238 inches²
Lights	2 strips of bright LEDs
Handle	Shock-resistant ABS plastic with metal parts
Dimensions (LxWxH)	28" x 22" x 21"
Weight	210 lbs
Electrical	Fused for protection
Over Heating Alarm System	Yes
Vacuum Port	KF25 connector
Gas Inlet Needle Valve	Metal adjustable valve on the panel 3/8'' connector on the back side of oven
