Video Endoscope Ent Endoscope Camera Manufacturer 4K Endoscope Camera System

Product Description

Product Parameters

Product Item No.

TV-LSH101A (4K Carema)

System Parameters
Input Interface	SDI 4K 60FPS
Output Interface	HDMI/SDI
Keypad Control	Control the mainboard menu and shortcut keys through RX/TX
Power	AC110V~240V
Shortcut Key Function	Freeze/White Balance/Video/Photo/Digital Zoom
Noise	<45db
Working Environment	-10ºC~60ºC
Product Size	L336*W330*H116mm
Net Weight	4.2KG

Camera Parameters
Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3864(H) × 2192(V)Approx. 8.46M pixels
Resolution	SDI 4K 60fps
FREEZE	The picture freezes
AWB	One Button White Balance
Min-illumination	Color:DSS:0.017LUX BW DSS: 0.008 LUX
S/N Ratio (Signal to Noise Ratio)	More than 42Db(AGC off)
D-ZOOM	Image zoom 1-8X
Color	RED/GREEN/YELLOW/BLUE
Brightness	1-30 steps
Sharpness	1-40 steps
Lens Mode	ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30ºC~70ºC
Power(Max.) Supply	DC12V ±10% <3W
Working Current	250mA±10mA

Light Source Parameters
Light Type	LED
Effective Optical Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support
Light Emitting Area (mm²)	3.8

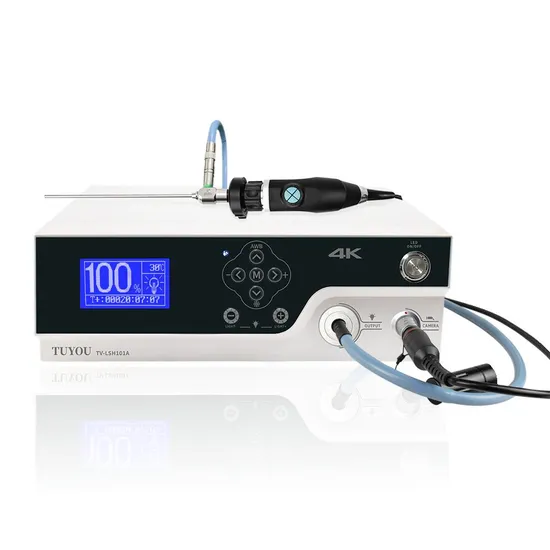

Products Description Product Composition Introduction:
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface). It is widely used in ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other departments in clinical practice 1. Self-contained video recording system, self-contained light source, and self-contained display screen;
2. Multiple output signals, can be connected to an external display;
3. One-key freeze, one-key white balance, one-key key to zoom in and out;
4. with high-definition photo/video function;
5. Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
Customer Feedback Company Profile
Shenzhen Tuyou Medical Imaging Co., Ltd.
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products. Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises. We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Certifications
Packing & Delivery
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free. Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Ali Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.

---
