Suntech High Quality Wire Drawing Machine for Nail Making/ Welding Wire/Welding Electrode/Wire Mesh/PC Wire

Product Description

Wire Drawing Machine for Nail Making/ Welding Wire/Welding Electrode/Wire Mesh/PC Wire

Product Description
1. Specifications

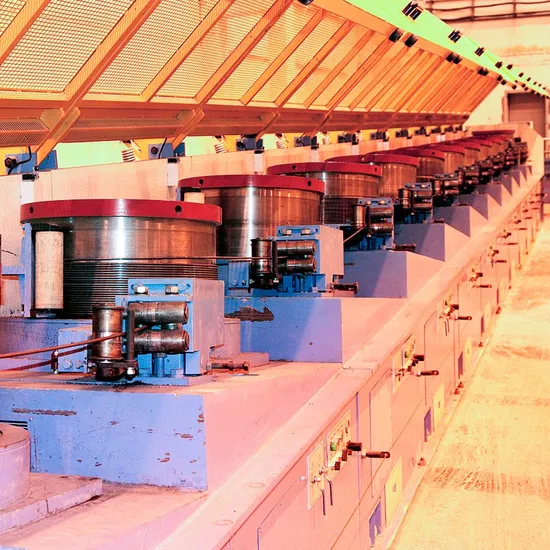

Straight type steel wire drawing machine
For high carbon steel wire For low carbon steel wire
AC frequency-variation motor
PLC logical control
High efficiency
2. Product Description The straight wire drawing machine series of our company have absorbed the advanced advantages from both at home and broad in the machinery design process. Our machine have all kinds of design and configurations according to the different finished products and different request from clients, which makes us in the leading position of concerning the product characterisitics for user. It is applicable to drawing spring steel wires, tyre rib steel wires, steel wires for ropes, optical fiber steel wires, CO2 shield welding wires, flux cored electrodes for air welding, alloy and stainless steel wires, aluminum clad wires, under-relaxation pre-stressed steel wires and so on.
Product Parameters

3. Technical parameter

Model (Block diameter)	300	350	400	450	500	560	600	700	800	900	1200
Strength of inlet wire (MPa)	≤1250
Number of Block	2~11	2~11	2~11	2~12	2~12	2~12	2~12	2~9	2~9	2~9	2~9
Maximum diameter of inlet wire (mm)	2.8	3.5	4.2	5	5.5	6.5	8	10	12.7	14	16
Minimum diameter of outlet wire (mm)	0.5	0.6	0.75	1	1.2	1.4	1.6	2.2	2.6	3	5
Highest drawing speed (m/s)	~25	~20	~20	~16	~15	~15	~12	~12	~8	~7	~6
Drawing power (kw)	7.5~18.5	11~22	11~30	15~37	22~45	22~55	30~75	45~90	55~110	90~132	110~160

Instruction of wire drawing machine
Transportation system:
Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth surface.
Way of speed adjusting:
AC Frequency conversion speed adjusting or DC speed adjusting.
Way of control:
Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function.
Way of take-up:
Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.
Way of pay-off:
Spooler pay-off, high pay-off frame, "-" type pay-off, duck-nip pay-off, can pay-off without stop work.
Main function:
Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely,slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.
Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).lectric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).Alloy wire and other kinds of metal wire.
Notes: All the parameters might be changed according to the actual situation.
Detailed Photos

Reference Photos
Packaging & Shipping

Packaging & Shipping We can pack it by pallet, or according to the customers' specific requirements.
After Sales Service
Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in metal products area.
