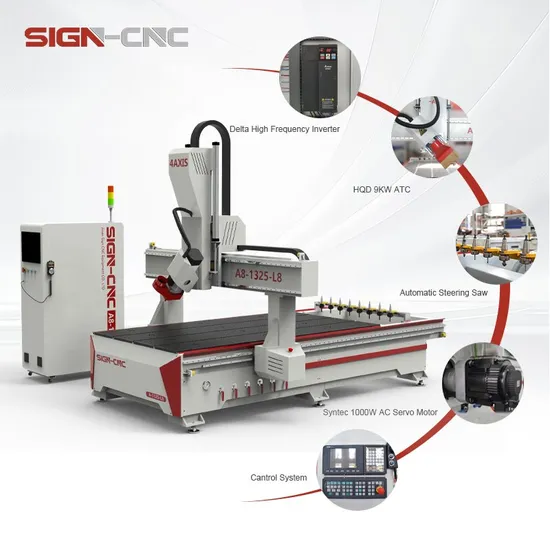

| Model | A8-1325-L8 |
| X, Y Working size | 1300x2500mm |
| Z feed Height | 400mm |
| Table Surface | Vacuum table |
| X, Y Structure | Rack and Pinion Drive, 25mm Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |
| Max. Rapid Travel Rate | 33000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 9.0KW HQD spindle ATC |
| Spindle speed | 0-24000RPM |
| Tool Magazines | Carousel Tool magazines 8pc |
| Drive Motors | 1000W Bus Servo motor and driver Zaxis with brake |
| Working Voltage: | AC380V/50/60Hz |
| Command Language | G code |
| Control System | Syntec 60WE |
| X,Y,Z repositioning Accuracy | ±0.01mm |
| X,Y Resolution | <0.01mm |
| Software | Artcam |
| Running Temperature | 0 degree - 45 degree |
| Relative Humidity | 30% - 75% |
| Package | Wooden Box |
| Table | Loading and Unloading table |
