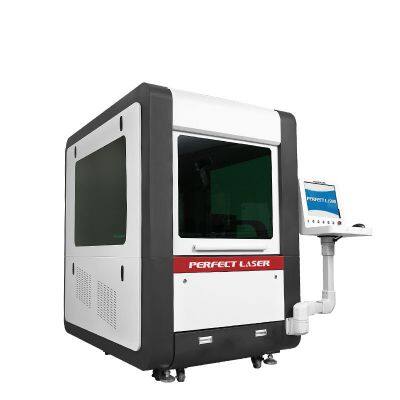

1500w small 600x600mm Metal Fiber Laser Stainless Steel Cutter

Product Details

Product Description

Product Description
Features:
1. Low operation cost: The power consumption of the metal sheet cutting machine is only 70-80% of Co2 laser.
2. High cutting speed: The speed of the metal sheet cutting machine is 2-3 times faster than YAG or Co2 laser.
3. High cutting accuracy: The finest laser beam of the fiber laser cutter is up to 0.01mm.
4. Low maintenance: This kind of fiber laser cutter is almost totally free of maintenance.
5.The small laser metal cutting machine is adopted advanced Germany technology, ensure the possess of high tech in the world.
6.With advanced optical system: To ensure good laser beam quality can strongly improve the laser power and laser beam quality.
7.With dynamic auto-focus system: To keep the same distance between the metal sheet and laser head. So that the fiber laser cutter realized the accuracy of cutting effect.
8.With pre-run function: To simulate the laser cutting path, Pre-run the cutting path in advance, ensure finding the precise cutting position for the fiber laser cutter.
9.With red light pointer: As the laser beam is in-visible, we adopt red light pointer to indicate the real position of the laser beam make cutting more accurate.
10.With high mirrors and lens cooling technology: All mirrors and lens is cooled by water. Takes the mirror heat during working. Prolong it’s lifetime. Save future operation cost.
11.With auto oil-filling system.
Technical Parameters:

Model			PE-F6060
Laser type	Fiber laser
Laser power	1500W
Laser technique	Germany technology
XY axis processing format			600*600mm
Laser source	Germany imported fiber laser source
Running speed	10-35m/min
X/Y axis positioning accuracy	±0.03mm
X/Y axis repeated positioning accuracy	±0.02mm
Minimum cutting line width	0.05mm
Laser wavelength	1080nm±5
Modulation frequency	5000Hz
Fiber length	15m
Cooling method	Double temperature and double control water cooler
Control system	Perfect Laser optical fiber cutting control software
Positioning	Red light
Overall power consumption	≤15KW
Service voltage	380V,50/60Hz
Maximum load of table	100KG
Transmission mode	Double drive precision screw+linear guideway
Drive Mode	Servo motor
Compatible File	AUTOCAD/CORELDRAW/PLT/DXF/BMP/AI etc
Focusing Method	Automatic focus
Control Mode	Off-line motion control

---
