Double Axle Waste Aluminium Extrusion/Cans/Bars/Plates/Profile/Sheets Shredder Machine

US$8,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FM-30-1000
Drive
Electric
Object
Metal
Type
Roller Crusher
OEM
Accepted
Principle
Roller Culling
Finished Surface
Gear Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Dedicated Tongs
Transport Package
Plastic Film
Specification
5100*1200*2300mm
Trademark
FOTMA
Origin
China
HS Code
8477800000
Production Capacity
China

Packaging & Delivery

Package Size
500.00cm * 230.00cm * 230.00cm
Package Gross Weight
6000.000kg

Product Description

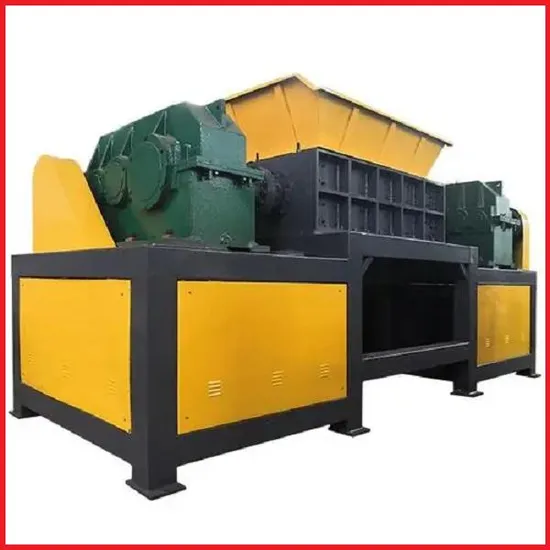

Double Axle Waste Aluminium Extrusion/Cans/Bars/Plates/Profile/Sheets Shredder Machine
Double shaft shredder machine is through the cut, tear and squeezing, reaching to decrease the size of raw material.
Aluminium shredder machine is used for cutting, crushing and recycling of aluminium extrusion, cans, bars, plates, profiles and sheets in a convenient manner. Our Aluminium Extrusion machine is made and designed by using quality approved materials under the strict supervision of professionals, as per the standards laid down by regulatory bodies.
Aluminium shredder machineis widely used for waste aluminium extrusion, cans, bars, plates, profile and sheets. That has high production efficiency. The mechanized feeding way and high automation degree greatly reduce the labor intensity of workers and improve the working environment.

The working principle:
Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materials, and repeating this move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw material is too big, Machine will inverted running and stop, avoid damage of blades or motor. To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

Product features:
1. The double shaft shredding machine adopts automatic control circuit, it has 4 control functions: start, stop, reverse and overload automatic inversion.
2. With a low speed, large torque and low noise.
3. The blade has many different materials: 9 Cr Si, SKD-11, 6cRw2Si, Cr12MoV, D2, W6, 55SiCr,
high hardness, good wear resistance, more choices.
4. The main shaft after heat treatment, increase the rated torque.
5. Split type bearing technology design, can quickly and efficiently to replace bearings, blade.
6. Spiral arrangement blades, increase the service life of the equipment.

Technical parameters:
Model Power(kw) Capacity(kg/h) Quatity of blades Inlet size(mm)
Blades diameters
Φ200*20


FM-500 7.5-11 400-600 20 800*600
FM-600 7.5-11 500-800 22 800*600
FM-800 11*2 600-1000 30 1000*800
FM-100 15*2 700-1200 30 1200*800
Blades diameters
Φ200*20


FM-800 15*2 800-1200 24 800*1200
FM-1000 22*2 1000-1500 30 1000*1500
FM-1200 22*2 1500-2000 36 1500*1800
FM-1500 30*2 2000-2500 48 1500*2000
Blades diameters
Φ400*40




FM-800 15*2 1000-1500 18 800*1200
FM-1000 30*2 1500-2000 22 1000*1500
FM-1200 45*2 2000-3000 28 1500*2000
FM-1500 55*2 2500-3500 36 1500*2000

Photo:
