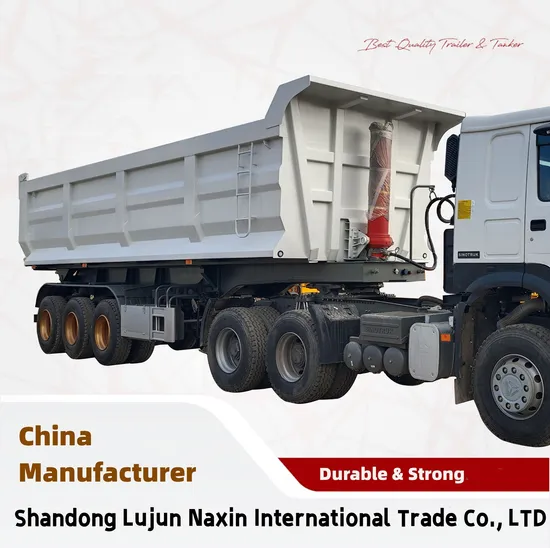

3/4 Axles 60-80 Tons Heavy Tipper / Dump Truck Semi Trailer

Product Description

3 AXLES 50 tons dump/tipper semi trailerDetailed Photos
Product Parameters

-----Type:	SSY9401Z
Axles:	3 axle	3 axle	3 axle
Nominal length (Version):	8.2m (Short)	9.2 m (Normal)	10.2m (Long)
Nominal volume (outer tailgate):	26- 32 m³	30 -36m³	33 - 40 m³
Nominal volume (inner tailgate):	25 - 31 m³	29 - 35 m³	32 - 39 m³
Side wall height:	1,400 - 1,700 mm	1,400 - 1,700 mm	1,400 - 1,700 mm

Specifacition

Tare weight	according to requirements
Size	according to requirements
Payload	40T-60T
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345B , welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width140mm ;
Side beam	Designed according to the load weight of the trailer
Cross member	Designed according to the load weight of the trailer
Floor	Thickness 8 /10 mm
Side wall	Thickness 6/8 mm
Cylinder	HYVA brand
Axle	3 axle FUWA brand 13T /16T
Suspension	American type suspension
Leaf spring	10pcs*13mm*90mm
Tire	12R22.5 12+1pcs
Wheel rim	9.0-22.5 12+1pcs
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 28T
Twist lock	no
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	4S/2M
Light	LED 8 side lights and 2 rear lights 2 width lamp
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery	5 workdays after we received 30% of contract value T/T down payment.

Tailgates for every useChoose your ideal solution from the different tailgate variants:
You get ultimate flexibility from the S4 or S5 switchable tailgates with jaw or claw locking mechanisms.
Your open the S6 tailgate variant hydraulically - in conjunction with the i.s.a.r.-control radio control unit very comfortably a the press of a button.
Here you can find our complete tailgate options.Tailgate opened hydraulicallyThe hydraulic tailgate opens fully before tipping starts, remains open during tipping, and closes tight without a lock.
Tailgate opened swinging from the topThe swinging hinged tailgate is low wear and opens as early as a tipping angle of 3°.
What is a tipper trailer?
A tipper trailer is a trailer with a tipping loading floor. We offer tipper trailers that tip only to the rear or three ways. That way, we offer a solution for any job. Tipper trailers are highly suitable for moving loose cargo, like sand or gravel.
How does a tipping trailer work?
Tipping trailers are intended primarily for the carriage of loose loads such as sand and gravel and can tip their load bodies through a large angle such that the load then slides out the back. Unlike Tiltbeds, Tipping trailers keep all their wheels on the ground during discharge.
Our Advantages1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
Your benefits:
Best driving characteristics through low centre of gravity and innovative running gearPayload-optimised through low tare weightHigh working speeds through high-performance hydraulicsLong service life through low-wear NAXIN tipper bodiesAvailable in an angular or round tipper body shape
You are warmly welcome to visit our factory business. Let us go together to develop markets and get better future.
FAQ1. What is your terms of shipment?A: Generally, we ship our truck by ro-ro ship, bulk cargo vessel, container etc.2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.3. What is your terms of delivery?A: EXW, FOB, CFR, CIF4. How about your delivery time?A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.5. Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.6: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
After Sales ServiceWe will provide you with quality service 24 hours a day.
If you have any problem after receiving the goods, we will solve it for you at any time!
Waiting for your contact --------Doris Han

---
