Acrylic Signs Making Molding Car Parts Thermoforming Machine ABS Sheet Plastic Vacuum Forming Machine

Product Description

Automatic Plastic Vacuum Forming Machine for 3D Signs Acrylic ABS PVC PMMA Pet Sheet Thermoforming with CE SGS Certification Bsx-1224 4*8feet Boardhttps://v.made-in-china.com/ucv/sbr/76d0b20be913bdfdb090349fc42803/874baa971910231374027024058476_h264_def.mp4
Product Description

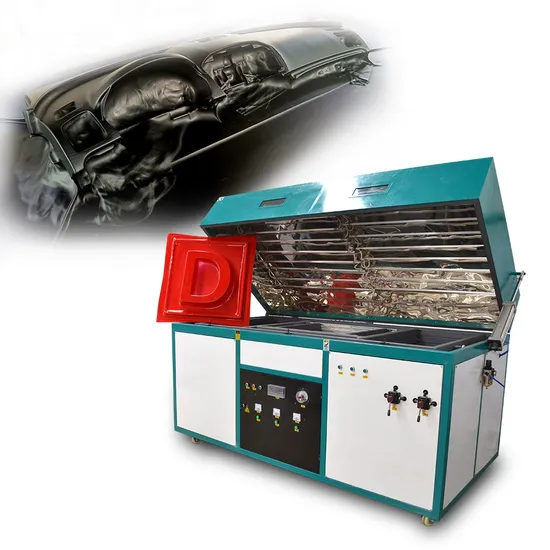

The BSX-1224 Vacuum forming machine is designed for heating and thermoforming Acrylic, ABS, PVC, and other thermoplastic materials. It could thermoform flat sheets into different types of 3D designs. which is widely used in different industries such as advertising, cosplay props, home decorations, Molding, etc.
The BSX-1224 vacuum forming machine has the advantages of adjustable materials sizes, fast and uniform heating, great forming result, and high forming height. It is very suitable for the production of big thermoforming pieces

Model	BSX-1224	BSX-2030
Working area(mm)	1200*2400	2000*3000
Forming area(mm)	1040*2240	1840*2840
Function	Suction & Blow	Suction & Blow
Max. suction forming depth(mm)	300	300
Oven open style	Automatic open	Automatic open
Heating area	1	1
Suction holes	1	1
Vacuum pump output	63m3/h	100m3/h
Total power(kw)	20.5	34
Working Voltage	AC380V/50HZ/3P	AC380V/50HZ/3P
Net Weight (kgs)	950	1680
Overall size (mm) (L*W*H)	2870*1550*1650	3550*2250*1650

Applications materials
Application materials
- Acrylic
- PVC
- ABS
- Other thermoplastic(PP, PS, PE, EVA)
1. Whole machine guarantee 1 year
2. Lifetime maintenance free of charge.
3. English speaker engineer 24 hours online service each day, free full technical support.
4. Machine has been adjusted before delivery, manual and related video will be with the machine.
5. Our engineers are professional in different types of thermoforming solutions, free thermoforming training is offered when you need it.
FAQ:
Q1 Which material can use ?How to choose vacuum forming machine ?
A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material .
About how to choose vacuum former ,usually we need to know below questions
1) The material type and material thickness ,Less than 6mm
2) Finish forming products size
3) Sample pictures
Q2 For this machine what is the working voltage,if you accept the customized voltage ?
A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.
Q3 When this machine working ,if it need any accessory equipment ?
A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off unwanted edge , need trimmer . for this machines we all can provide
Q4 For the working area or forming height if you can accept customized ?
A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .
Q5 After I buy this machine how you arrange training ?
1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .
2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact with him ,he will service for you.
3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online service

---
