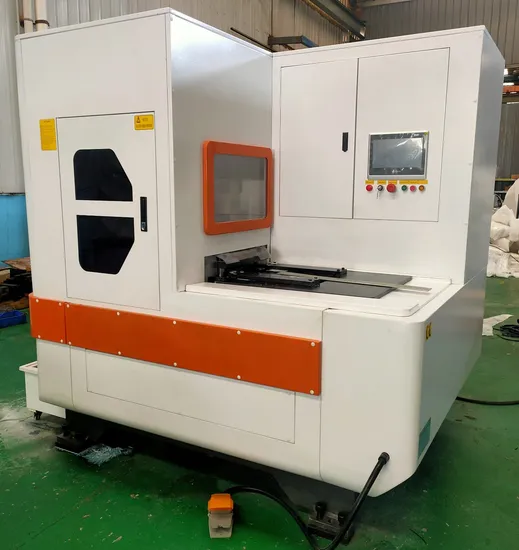

Busbar Chamfering and Arc Milling Machine

Product Description

Advantages: 1.Using automatic technology, making the pressure head on the point.
2.With a supercharger, it can make the workpiece more stable and better processing surface.
3.Adopt international standards BT4o knives, change tools easy with good rigid high accuracy.
4.High accurate ball screw transmission and straight guide to guarantee high precision& efficiency.
5.The adopted component is world-famous,with long service and good quality.
6.Operating software is 3D, it demonstrates the whole process of punching, hearing and bending.
Main data:

Capacity	Thickness	mm	3-15
	Width	mm	30-230
	Min Length	mm	200
Stroke	X Axis	mm	260
	Y Axis	mm	890
	Z Axis	mm	190
Servo Spindle	Tool Holder Model	/	BT40
	Total Power	kw	11
	Servo Motor Power of Spindle	Kw	5.5
	Speed of Spindle	rpm	0-6000
	Tool Changing	/	Pneumatic
Accuracy	Position	mm	±0.05
	Position Repeat	mm	±0.05
Library	Knife	pc	6
	Stroke	mm	250
Machine Weight		Kg	2400

Workpiece Samples
Package and Shipment
Certifications

---
