Automatic Spring Water Bottling Plant Bottle Water Filling Machine Production Line

Product Description

Latest XINMAO News
9/5/2023 10/16/2023 12/5/2023
Customers from Uzbekistan came to Customers from Malaysia came to Customers from Benin come to visit our factory visit the water production visit the production line of sports the juice and water production line.
line. cap juice.

8/2/2023 10/21/2023 12/28/2023
XINMAO 60-60-15 18000bph XINMAO 5Gallon bottling line XINAMO Auto 6000bph bottling
carbonated drink line for shipping to USA. line, shipped to Indonesia.
glass bottle.

Investment Profit
Product Description
Product introduction

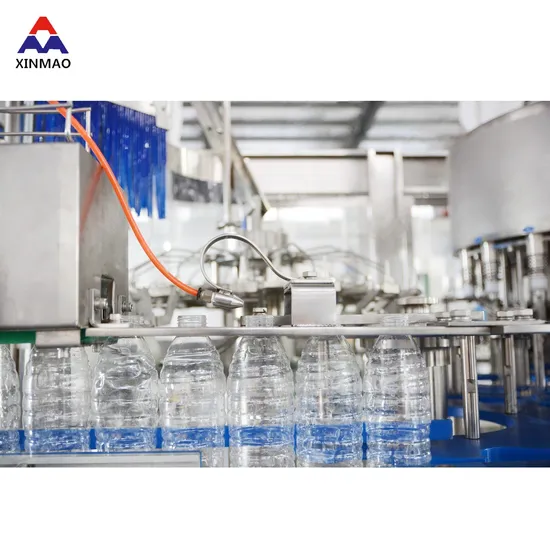

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. XINMAO Bottle line automatic water filling machine/water filling machine for sale.Washing PartFunction : washing bottle inside and outside dust .
<1>All 304/316 Stainless steel rinse heads, water spray style inject design, more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pumpFilling PartFucntion : filling water into bottle .<1> 304/316 Stainless steel high precision filling nozzle<2> Filling volume adjustable infine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean <4> 304/316 stainless steel filling pumpCapping PartFunction : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping <4> Automatic stop when lack of bottle Rinser:
The rotary wheel is a fully stainless steel welded structure.The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.The rinser is driven by driving system positioned inside machine frame via gear transmission.Transfer starwheelMade of stainless steel of superior quality.Equipped with bottle jam protection device.Filler:Rotary wheel fully made of stainless steel SUS 304.Gravity filling method.Filling valves are made of SUS316L.Filling valves are reasonably structured with accurate filling.Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.Level of cylinder is controlled with float-ball.Filler is driven through gears inside the machine frame.Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.Capper:
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:
The equipment is designed and used the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.
Product Parameters
We supply complete solution for the pure drinking mineral water PET bottle filling plant. Including: Water Filtration treatmentsystem/PET Bottle Washing filling capping machine/Code sprayer /Automatic labeling machine/ Automatic packing machine / Automatic Palletizer system/ Automatic film wrapping machine and son on
200ml to 2L Bottle Sizes 5L & 10L Bottle Sizes 3Gallon to 5Gallon Bottle sizes

Model	CGF 8-8-3	CGF14-12-5	CGF16-16-5	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Capacity (BPH)	1000-2000	3000-5000	6000-8000	8000-12000	12000-15000	16000-20000	20000-24000
Power supply	1.5KW	1.5 KW	2.2 KW	3 KW	4 KW	7.5 KW	9.5 KW
Overall dimension	2000×1550×2650	2360×1770×2700	2760×2060×2700	2800×2230×2700	3550×2650×2700	4700×3320×2700	5900×4150×2700
Weight (KG)	1100	2500	3500	4200	5500	6800	7600

Water Treatment System
This water treatment system is made by the raw water tank through the pretreatment to reverse osmosis desalting device to get pure water. Pretreatment is by silica sand filter, activated carbon filter, sodium ion exchanger and the precision filter composition.The reverse osmosis device the core parts adopt the world famous water pump and reverse osmosis RO membrane.
Full Electric Blow Molding Machine
Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food,beverages,cosmetics,pharmaceutical industry.
Automatic PVC Shrink Labeling Machine
Application: PVC / PET / OPS label sleeve * Stainless steel Main Machine Frame / Famous electrical components
Automatic PE Film Shrink Wrapping Machine
Shrink wrapping machine is suitable for wrapping and packaging of such products as pop-top, mineral water, bottles beer, drinks etc without bottom-tray(or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing of shrink wrapping machine process adopt the Germany advanced technology. It main parts of shrink wrapping machine are imported from international famous companies, capability stable and using long-time.
Company Profile
About XINMAO MACHINERYZhangjiagang City Xinmao Drink Machinery Co.,Ltd. founded at 2005.Itd is located at Jinfeng Economic Development Zone OfZhangjiagang City. The company has more than 17 years of production practice experience and absorbs advanced technology at home and abroad. Our company is a professional manufacturer integrating research,development,and production of various water,juice,soda,and can beverage machinery.We are a leading enterprise in research and production of beverage filling and packing machines. we also supply turnkey project according to customers' request, including workshop design, machine layout design, water,gas, electic cable layout design, label and bottle design.
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 15 years experience.Q2: Why is your prices higher than others?A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.Q3: What is your delivery time?A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.Q4: How to install my machines when it arrives? How much the cost?A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines Ifneeded.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.Q5: How long time for installation?A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.Q6: How about the spare parts?A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.Q7: What is your guarantee?A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.Q8: What is your payment term?A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.

---
