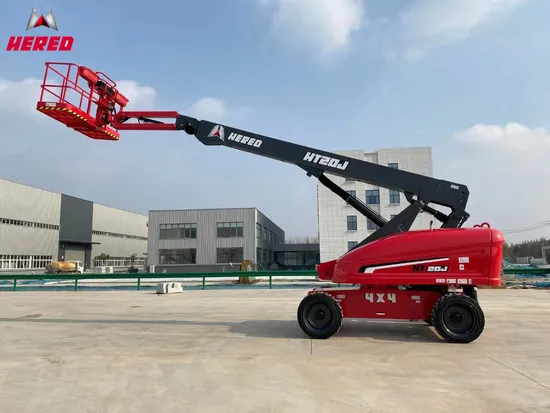

Hered 22 Meters Aerial Work Platform Telescopic Boom Lift

Product Description

Online consultation to get the lowest price
Telescopic boom lifts feature a retractable boom that can reach different heights. Unlike articulated cantilever lifts, telescopic booms have a straight arm that is attached to a free rotating turntable. The bucket on this type of lift is usually small and can only accommodate one person at a time. Telescopic boom lifts are best suited to highly specialized work, such as electrical repairs or tree trimming, where one worker can do the job. Telescopic boom lifts have a longer range of action than other options.They are available with electric operation and solid tires for indoor use or gas operation as well as pneumatic tires for outdoor use.

MODEL	HT20J
Max.Working Height	21.8m
Max. Platform Height	19.8m
Max. Horizontal Extension	16.6m
A- Length (Stowed)	9.76m
B- Width (Stowed)	2.49m
C- Height (Stowed)	2.77m
D- Platform Length	2.44m
E- Platform Width	0.91m
F- Wheelbase	2.5m
Wheel track	2.1m
G- Ground Clearance	0.31m
PERFORMANCE
Platform Capacity(unrestricted/restricted)	300kg/450kg
Max.Drive Speed (Stowed)	4.8km/h
Gradeability	45%
Turning Radius(In.)	2.42m
Turning Radius(Out.)	5.57m
Turntable Rotation	360°Continuous
Platform Rotation	-80°to 80°
Vertical JIB rotation	-65°to 78°
Tilt Rating	5°
Operating Wind Speed	12.5m/s
Tail Swing	1.42m
POWER
Engine	Ku-bo-ta V2403
Fuel Tank Capacity	130L
Control Voltage	12V
Hydraulic Tank Capacity	170L
Drive Method	FWD
Turn Method	Front
Tires	36X14-20
WEIGHT
Weight	12100kg

PRODUCTS DETAILS


Located in Liaocheng, Shandong province, HERED(Shandong) Intelligent Technology Co., Ltd. was founded since 2008. After years of fast development, Hered specializes in the research, manufacture, sales and service of a wide range of access solutions and become a very important player in the MEWP business. HERED has achieved a number of awards and certifications in recognition of the brand's quality and achievements.
Hered has the industry's most complete product lines, with her own self-propelled scissor lift, articulating boom lift, and telescopic boom lift,with working heights from 6- 28 meters. Hered has very strict quality control process. Components and integrated lifts have the GB/CE/ANSI/IPAF certificates. Products are widely used in stadiums and plants, petrochemical sites, ship buildings, municipal works, ports, complex construction, commercial maintenance and so on.
HERED has served global customers in Europe, Southeast Asia, Africa and USA, totally more than 40 countries worldwide. Hered aims to provide intelligent, efficient and safe aerial work solutions to the global partners. OUR PRODUCTS
1. Q: Are you a factory or trading company?
A: HERED(Shandong) Intelligent Technology Co., Ltd. is a factory with 10 years experience in the scissor lift articulating boom lift, and telescopic boom lift. 2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Liaocheng City ,Shandong,China. We will pick you up from Jinan or Qingdao Airport. Warmly welcome to visit us!
3.Q: What is your after service ?
A: Our company provides free lifelong after-sales service, 24 hours to reply to all inquiries.
4.Q: What is your warranty?
A: The"HERED"lift quality warranty period is 24 months(counting from the date of
shipment.)
5. Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, etc.
6. Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before shipment.

---
