Product Details
Product Description
Product Description
CA-IS36xx high performance, 5000 VRMS isolation withstand voltage, integrated high efficiency, low radiation DC-DC
Digital isolator for converter
1 Product characteristics
• Signal transmission rate: DC~150 Mbps
• Default output: high level and low level optional
• Accurate timing (typical 5 V power supply)
▪ 10 ns propagation delay
▪ 1 ns pulse width distortion
▪ 2 ns propagation delay deviation
• High CMTI: ± 150 kV/µ S (typical)
• Three-state output according to enable signal
• Schmidt trigger input
• Wide input voltage range: 3 V~5.5 V
• Wide operating temperature range: - 40 ° C~125 ° C
• Integrated high-efficiency DC-DC converter and on-chip transformer
▪ Output voltage optional: 3.3 V or 5.0 V
▪ Built-in soft start circuit to prevent surge current and output overshoot
▪ Overload and short circuit protection function
▪ Overheat shutdown protection function
• Excellent electromagnetic compatibility (EMC)
▪ Low radiation
• Excellent isolation performance
▪ Isolation voltage up to 5 kVRMS
▪ Barrier life:>40 years
• RoHS compliant packaging
▪ SOIC16-WB
2 Application
• Industrial automation control system
• Motor control
• Medical equipment
• Testing and measurement
• Isolated ADC, DAC
3 Overview
CA-IS36xx is a series of digital isolators that enhance isolation and withstand voltage and integrate
A chip of DC-DC converter. The emergence of CA-IS36xx can replace the traditional
The isolated power supply scheme is composed of discrete devices, and the new scheme makes the appearance
It is smaller and can achieve complete isolation.
CA-IS3620/CA-IS3621/CA-IS3622 is a dual-channel digital isolator.
CA-IS3640/CA-IS3641/CA-IS3642/CA-IS3643/CA-IS3644 Yes
Four-channel digital isolator.
CA-IS3620 chip has two channels in the same direction, and CA-IS3621 and CA IS3622 chip have two reverse channels, as shown in Figure 7-1. CA IS3640 chip has four forward channels, and CA-IS3641 chip has three
Two forward channels and one reverse channel, CA-IS3642 chip has two
Forward channel and two reverse channels, CA-IS3643 chip has one forward channel
The forward channel and three reverse channels, CA-IS3644 has four reverse channels,
As shown in Figure 7-2. All devices have fail-safe mode options, such as
If the input signal is lost, the default output of the chip with L suffix is low power
Flat, the default output of chips with H suffix is high level.

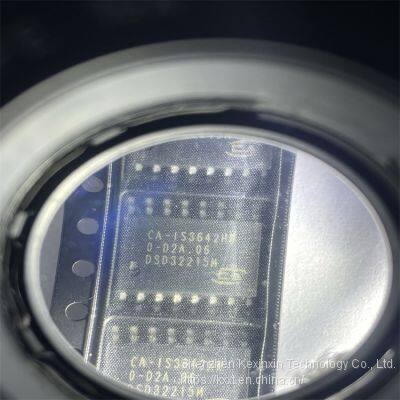

Part No.:
CA-IS3620
CA-IS3621
CA-IS3622
CA-IS3640 package: SOIC16-WB (W)
CA-IS3641
CA-IS3642 package size (nominal value): package size (nominal value)
CA-IS3643
CA-IS3644
Factory Pack Quantity: 1000
>>
