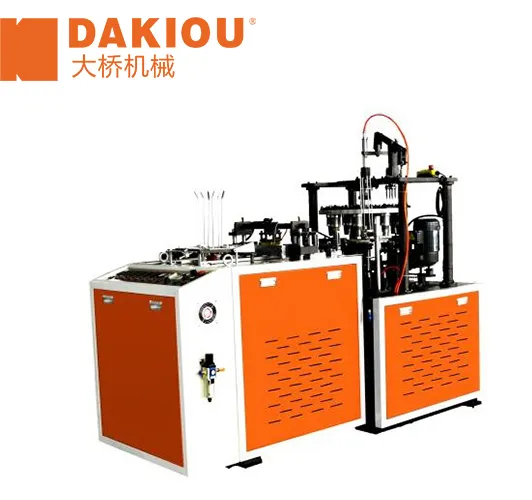

Gear Structure Medium Speed Paper Cup Forming Machine 70-90PCS/Min

Product Description

ZSZB-D model automatic paper cup forming machine is the latest model which use the high level technical to improve,use the interval paper feeding,ultrasonic(heater)sealing,robot hand cup body transfer,oilling,bottom punching,bottom folding,pre-heating,knurling,cup collection to form the cups,whole machine use the single shaft driving system,open cam system, and gear driving,automatic oil lubrication, machine use the sensor alarming system, it is a idea machine based on old model(three plates chain driving machine model)
Technical Specification

Type:	ZSZB-D
Cup size:	2.5-12oz(,different size mold exchanged)
Suitable paper material:	150-380g/m2 (single or double PE-coated paper)
Capacity:	70-90pcs/min /
Power source::	380V 50HZ(please inform us your power in advanced)
working power:	4KW
Weight:	2000KG
Total Power:	8KW
Package size:	2200 x 1200 x 1700 mm
Working Air Source:	Air pressure 0.4Mpa;Air out-put:0.6m3/min
	A:top diameter: Min 45mm---Max 80mm B: bottom diameter Min 35mm---Max 55mm C: total height Min 30mm---Max 80mm D:bottom knurling depth Min 4mm---Max 12mm E: rim diameter Usually Φ2.5---Φ3

FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport. 2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on. 3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit. 4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.

---
