UTP CAT6A CAT6 Signal Control Data Coaxial Speaker LAN Computer Network Cable

Product Description

Product Description Network Cable,Data Cable Signal Communication Cable
Hot sale type: Cat6 , Cat5e , Cat6A , Cat7 ,UTP and SFPT,FFTP type for Indoors and Outdoor
Structure For Network Communication Cable
1.4 twisted paris,8 Insulated core
2. Conductor size: AWG23, AWG24 according to customer's requirements
3.Insulation: HDPE insulation,
4.Sheath /Jacket: ROHS PVC.CM PVC
5. UTP ,FTP or SFTP can be customized by customer's requirement.
6.Packing:305meter per roll, or 305m per easy-pulling box,or
500meter per drum, as per customer's requirements.

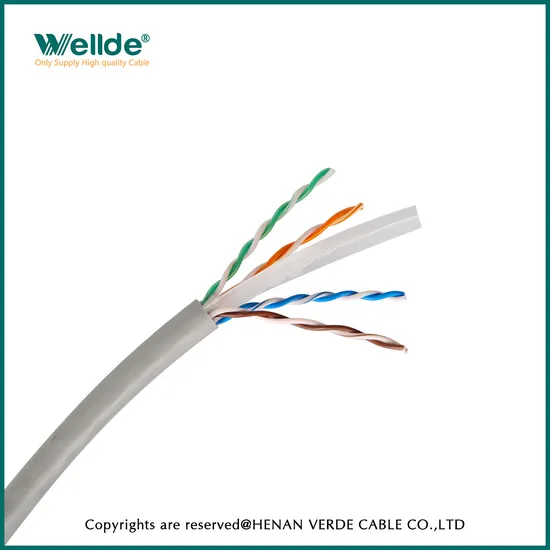

Product Parameters Structure for UTP CAT6 Cable:

Conductor	23 AWG copper wire
Insulation	HDPE, white insulated wire with color marks
Pair color	White-blue/blue,white-orange,white-green/green,white-brown/brown
shielding	Non UTP type
Jacket	PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 5.8 +/- 0.5 mm
Rip cord	Without rip cord,or as per customers' option
printing	As per customers' requirements

Testing standard for UTP CAT6:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:

Max pulling force	80N
Min. bent radius	65mm
Nominal weight	50Kg/Km
Work temperature	-15~+70ºC
Install temperature	+5~+40ºC
Combustion property	IEC332.1,VW1,IEC332.3 or as per sheathing types
Product length	Standard length305m,or 500mm,1000mm as per requirements

Electrical property :

Frequency (Mhz)	RL (dB)	ATT (Db/100m)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB)	Property Impedance (ohm)
0.772	19.2	1.8	76	74	70	100±15
1	20	2	74.3	74.3	67.8
4	23	3.8	65.3	63.3	55.8
8	24.5	5.3	60.8	58.8	49.7
10	25	6	59.3	57.3	47.8
16	25	7.6	56.2	54.2	43.7
20	25	8.5	54.8	52.8	41.8
25	24.3	9.5	53.3	51.3	39.8
31.25	23.6	10.7	51.9	49.9	37.8
62.5	21.5	15.4	47.4	45.4	31.9
100	20.1	19.8	44.3	42.3	27.8
200	18	29	39.8	37.8	21.8
250	17.3	32.8	38.3	36.3	19.8

Detailed Photos
Workshop View:
Q&A:
1. Q:How to choose the sheath type of cable?
A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.
2. Q.:Are you a factory or trading company?
A: We are a factory and have own export company, and we establised in 2007.
3. Q: What kind of electric wire and cable do you produce?
A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),PTFE wire PFA wire and High temperature Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)
4. Q: Is sample supplied if requested?
A: Yes!
5. Q: What certificates do you have?
A: We have been qualified with IEC, CCC, CE, RoHS.
6. Q.:Which markets do you mainly involve in?
A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico, Guatemala, Nicaragua.
Here only list one parts of our products,If you want to know more about us and our products,pls contact us.
