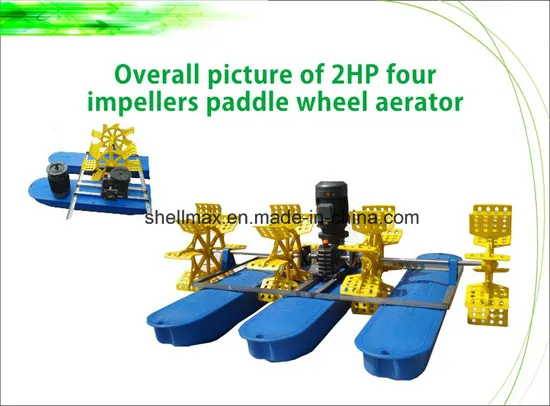

2HP 4 Paddle Shellmax Wheel Aerator

Product Description

SHELLMAX Paddle wheel Aerator is produced by break through improvement technology according to the most popular model in the international at the moment by our company, in which implicit multiple national patents. We adopt whole plastic float and stainless steel transmission shaft and frame. In April 2000, our aerators were passing examined by the Mechanical Instrument Quality Surveillance Inspection Center of National Fishery. All the 9 quotas reach the calling standard of SC/T6017-1999, among which the oxygen transfer capactity is 2.59kg (O2)/h, 34.3% higher than the standard. Power efficiency is 1.71kg (O2)/h. Kw, 36.8%higher than the standard.
1\Arcuate bevel-gear instead of worm gear is adopted, with high efficiency and saving over 20% electric energy than traditional models.
2\Arcuate bevel-gear is made of chromium-manganese-tianium with carbon tit riding on the surface. Long life span and high rigidity are available.
3\Mechanical seal is available to against oil leak pollution.
4\Protector inside is available to avoid motor bening burnt accidentally.
5\PE float, nylon impeller, stainless steel shaft and frame are available.

No.	Item Name	Quantity	Details	Functions
1	Motor	1 set	2 HP/1.5KW, 3 phase, cast iron body	Provide the power
2	Reducer	1 set	Arc-shaped bevel gear box, cast iron body	Change the motor output rate
3	Impeller	4 pcs	Dia:66.5cm Material: Engineering plastic	Splash the water and make oxygen into the water, provide enough oxygen
4	Float	3 pcs	100% New material	Support the paddle wheel aerator on the water surface
5	Bush Stand	2 pcs	100% New material	Support the Shaft
6	Shaft	2 pcs	304 stainless steel	Transfer the force
7	Cover	1 pcs	100% New material	Protect the motor

---
