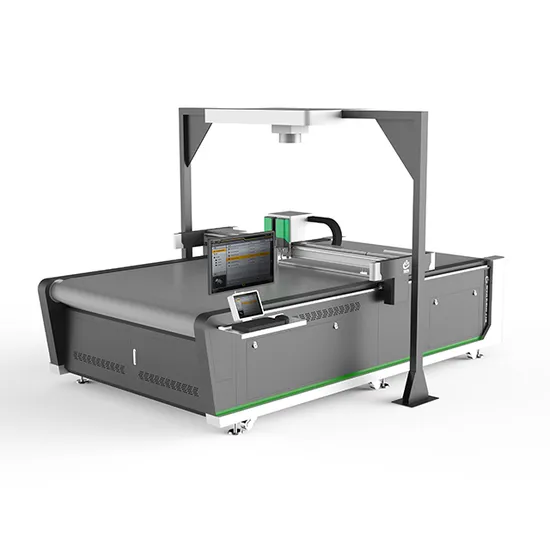

Chinese Manufacture Hot Sale Digital Flatbed Cutting Plotter for Automatic Feeding CNC Paper Honeycomb Box Cutting Machine

Product Description

Product Paramenters

Model	BZ-SQ1625(Size can be customized)
Effective working area	1600x2500mm
Multi-function tool	Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power round knife
Safety devices	Safety devices use infrared sensing, safe and reliable
Cutting speed	200-2000mm/s
Cutting thickness	≤50mm Other thicknesses can be customized according to the material
Applicable materials	Fabric/ Cardboard/ Paper/ Mats/ PVC/ EVA/ Leather/ Acrylic/ Foam/ XPE, Etc
Material fixing method	Vacuum partition adsorption
Transmission port	Network port
Transmission system	Panasonic servo motor, linear linear guide, timing belt, lead screw
Rated power	11kw
Rated voltage	380V±10%/220V±10% Optional
Control System	Chinese and English LCD touch screen
Operating environment	Operating environment Temperature 0-40°C Humidity 20%-80%RH
Support file format	AI,PLT,DXF,CDRetc
Main Accessories	Motor	Guide Rail	Switch	Knife Drive	Conveyor Belt
	Panasonic	HIWIN	DELIXI	Maxon	German

APPAREL AND TEXTILE AUTOMATIC CNC KNIFE CUTTING MACHINE
Product Description
Automatic CNC knife cutting machine
--1.Intelligent graphic layout software, it can achieve any shape you want to cut, material utilization rate 98%.
--2.High speed and quality. capable of achieving a cutting speed of 1.5 m/s, completely liberating manpower.--3. Smooth cutting without burrs, no pollution and no noise.
--4. High precision of cutting shapes and control cutting errors within 0.1mm.
--5. For cutting different materials 8 types of heads are available.
--1.BZ-POT High frequency pneumatic cutting tool for cutting hard and dense materials, the blade can cut materials up to 50 mm thick.--2.BZ-PRT Powerful Driven Rotary Tool fo cutting textiles.--3.BZ-EOT Oscillating knife for cutting soft and medium-density materials--4.BZ-UCT Universal cutting tool for high-speed, cost-effective cutting of materials up to 5 mm thick.
--5.BZ-VCUT The V-cutting tool is ideal for making complex structural designs of foam core or sandwich panel materials. The tool can be set to different cutting angles of 0°, 15°, 30°, 45°.--6.BZ-CTT CTT tools for creasing corrugated materials. For use in the packaging industry.--7.BZ-KCT Kiss Cut Tool,for cutting vinyl, foil, films,thin paper, cardboard and other thin materials.--8.BZ-RZ The router operates at speeds up to 60,0-00 RPM, and delivers solid performance on a wide ran.ge of rigid and flexible materials.Application and Samples
CNC vibrating knife Cutting Machine:
-- Bangzheng fabric cutting machines are known for their exceptional versatility and can easily handle a variety of fabric types, thicknesses and densities. The machine is popular for its ability to accurately cut fabrics of complex shapes, patterns or designs, whether it is a delicate pattern or a large design, it can easily handle it.
-- In industries that require high-quality and precise cutting. Its unique safety, stability, speed and accuracy ensure that every cut meets the highest standards. Not only that, it also has powerful functions such as strip, grid and pattern alignment, cutting net collars, cutting linings and secondary precision cutting.
Product Details Information
New modular tool design
Installing tools much more easier,For different cutting materials, suitable cutter heads can be selected for intelligent cutting.
Aviation-grade aluminum profile tabletop
The newly upgraded internal air suction structure ensures uniform air suction in all areas of the platform, more powerful air suction, and smooth cutting.
Intelligent CNC control system
Upload the design drawings to the CNC machine's control system, configure cutting parameters according to different materials, support global multi-language operation, and lifetime free system upgrades.
Lathe bed structure
The high-strength integrated frame is processed by imported milling machines to ensure the smoothness of the guide rail, greatly improving the stability and accuracy of the cutting process.
--1.Professional CAD/CAM software, efficient material layout, easy operation, labor-saving, enjoy free upgrades and lifelong training
--2.High efficiency max 11KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.
--3.Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.
--4.China Taiwan's HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.
--5.All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc,stable and durable, and all enjoy quality assurance.
--6.High speed visual recognition system, capable of achieving various working modes such as tracking cutting, projection without trajectory cutting, etc.
Why Choose Us
What kind of support you can get from Bangzheng?
1.--3 year warranty,Provide a full range of technical support for life.
2. --7 * 24-hour. Experienced technicians guarantee lifetime online support (via whatsapp/skyper/wechat/email/video conference). We have enough after-sales staff, so there is no need to worry about technical support caused by time difference.
3.--Local on-site installation and engineer training, with about 60G of after-sales installation videos provided.
Customer Photos
Packaging & Shipping
--1. Outside package: Standard marine export plywood case.--2. Inner package: Stretchy film and plastic film for humidity.--3. We can package according to your requests.
Company Profile
--Bangzheng Machinery Group is located in Jinan City, covering an area of 20,000 square meters. It is the largest flexible material cutting physical factory in northern China. As a professional manufacturer with many years of industry experience, we have established a good reputation for quality and reliability. We are a comprehensive flexible material cutting solution provider and manufacturer.
--There are 30 R&D engineers, 168 production technicians, 53 market service experts, and 39 overseas after-sales engineers. Our products serve more than 80 countries and 1,930 customers around the world, with an annual output value of more than 60 million US dollars.
--If you are looking for a reliable cutting solution provider for your business, Bangzheng Machinery Group is the right choice. Help you solve all production problems.
FAQ
1.-- Are you a factory or trading company?-We are a factory specializing in the production of cutting machines,we have lots of know how knowledge.-Each of our machines comes with a machine manual and a software manual. The company's backend stores a large number of machine installation and after-sales videos for your reference, and there is 24-hour online technical support. Until your machine can run smoothly.2.--Do you accept customized products?-Yes, our vibratory knife cutting machine is steady and reliable,Best-selling around the world.3.--Do you have agents or distributors in our country?-Yes, first of all, we have users all over the world, and we also want to find more suitable agents in your country. If you areinterested, please feel free to tell us and we will sell it to you at the best price of the agent.4.--What is the delivery process of the machine?-You can choose your transport and distribution by air,sea or land, we will plan the most suitable transportation method for you according to your requirements and budget.In order to recommend you the most favorable and suitable machine, please confirm the following questions:=======================================1) What is the maximum width and length of your material? What is the cutting thickness?2) How many kinds of materials do you want to cut?3) Do you have any doubts about our company and machines?4) Please tell us more requirements for cutting or other details===========================================After your confirmation, we will recommend you a suitable machine, thanks in advance.

---
