Wholesale Screen Mesh Manufacturing: Durable Woven Wire for Sieving & Metal Screen Panels

Product Description

Product Description

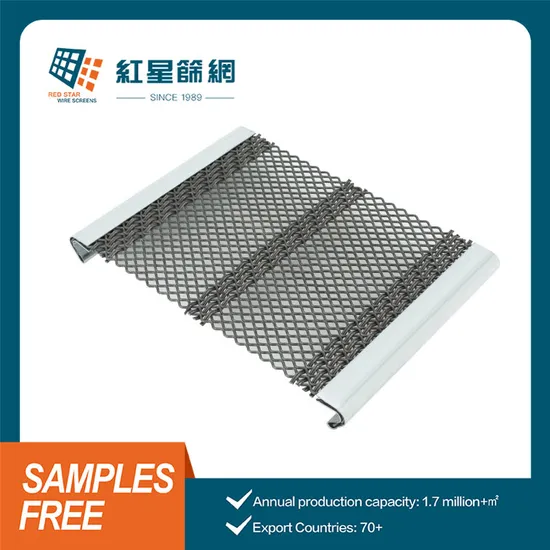

"RED STAR SCREENING MESH" is a crucial material utilized for screen-ing, filtering, and grading in various industrial sectors. Primarilycomposed of high manganese steel, this material exhibits out-standing wear resistance,impact resistance, and hardness, en-abling the mesh to withstand prolonged usage in high-load andhigh-intensity working environments without damage.
Wear Resistance
Manganese steel mesh exhibits excellentwear resistance due to the characteristicsof its material. lt can withstand friction andimpact from materials, maintaining screen-ing efficiency for extended periods. High Strength
High manganese steel possesses highhardness and strength, enabling the meshto withstand significant mechanical stressand vibrations without deformation ordamage. Adaptability
Manganese steel mesh is suitable forscreening requirements in various environ-ments and materials, including coal, ores,aggregates, and sands. lt is widely used inindustries such as mining, construction, andmetallurgy.Customizability
Depending on specific screening needs,manganese steel mesh can be customizedinto various specifications, sizes, andshapes to meet the requirements of differ-ent working scenarios.

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

Product Parameters Packaging & Shipping
Company Profile
Red Star Wire Mesh Manufacturing Co., Ltd. is an enterprise with outstanding achievements and extensive influence in the field of mine screen mesh manufacturing.
I. Development History
Established in 1989, the company has a history of 35 years and has accumulated rich experience and profound heritage in the screen mesh industry.
II. Scale and Facilities
The factory covers an area of 58,730 square meters and is equipped with five large workshops, including a steel wire processing workshop, a woven mesh workshop, a polyurethane screen mesh workshop, a self-cleaning screen mesh workshop, and a barbecue net workshop. It owns more than 260 sets of various types of equipment, possessing the ability for large-scale production and diversified product manufacturing.
III. Technology R & D
It has its own R & D and technical team and has built a 4,000-square-meter new wear-resistant material engineering technology research and development center. It has obtained 18 new product patents successively. Moreover, it has jointly established a graduate internship base with China University of Mining and Technology, continuously exploring screen mesh material technology reform and having strong strength in technological innovation and product research and development.
IV. Industry Status
China Mine Anti-blocking Self-cleaning Screen Standard and China Asphalt Mixing Equipment Wire Screen Standard, the drafting units of the two screen standards, have a high voice and influence in the industry.
V. Certification and Cooperation
It has passed ISO9001 quality management system certification, occupational health and safety management system certification, and environmental management system certification. The product quality is reliable. The products are exported to more than 70 countries such as the United States, Canada, Australia, Germany, the United Kingdom, and South Africa. It has always maintained good cooperation with many large enterprises and is highly recognized in the international market.
VI. Overseas Expansion
In 2016, it established an overseas warehouse in Melbourne, Australia. In 2022, it acquired the century-old German enterprise Karcher Siebtechnik. It actively expands overseas markets and businesses, enhancing the company's international competitiveness.
CertificationsFAQ 1.What's your adventage?
Honest business with competitive price and professional service on export process.
2.Can l customize the products?
Yes, as long as provide specifications, drawings, can only do what you want products
3. How I believe you?
We consider honest as the life of our company, we can tell you the contact information of our some otheiclients for you to check our credit, Besides, there is trade assurance from made-in-china , your order andmoney will be well guaranteed.
4.Can you supply sample for me to check?
Yes, we will provide sample for free.
5.How can l know how my order is being done?
We will inspect and test all items in order to avoid damage and missing parts before shipping. The de.
tailed inspection pictures of the order will be sent to you for your confirmation before delivery.
6. Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately ifyou are not pleased with our quality or service. For the overseas orders, we guarantee most accessoriesProvided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.

---
