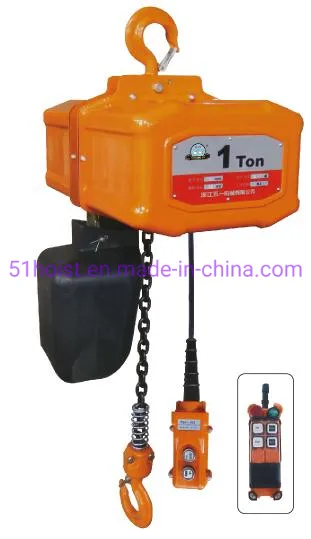

Hhw-B Type Electric Chain Hoist with Hook 0.25t-10t Lifting Equipment

Product Description

Product feature:
1. HHW-B electric chain hoist is a new kind of product we developed recently.
2. It has such characteristics as fast lifting speed, convenient operation and beautiful appearance. Especially, its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
3. It is widely used in lifting light and small goods. It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.
4. This product attests to be effective equipment which can improve working condition and enhance labor efficiency, Optional wireless remote controller.
Advantages:
1) Long history and famous brand: Established in 1972, with the famous brand of Shuang Ge, Peace Bird, Wuyi.
2) OEM experience
3) Scale of production: More than 400 employees and covers a total area of about 200, 000 square meters.
4) Honor and Certification: CE, GS certification by TUV. Two-time national gold award, this is issued by the government of China.
5) Equipment: 22 sets Original Wafios device.
6) Team: More than 100 professional technical team, and more than 50 salesman with the World-wide sales network.
7) Market occupancy: Almost 90% Southeast Asian market are SHUANG GE brand.

Model			HHW-B025	HH-B05	HHW-B10	HHW-B20	HHW-B30	HHW-B30S	HHW-B50	HHW-B100
Capacity(t)			0.25	0.5	1	2	3	3	5	10
Standard lift(m)			3	3	3	3	3	3	3	3
Lifting speed(m/min)			8	7	7	3.5	2.3	4	2.6	2.6
Motor power(Kw)			0.45	0.8	1.6	1.6	1.6	3.0	3.0	2× 3.0
Power supply			3-Phase/380V 50HZ
Control voltage(V)			24V
Insulation grade			F
Rating			40%
Spec. of load chain			5× 15	7.1× 21				9× 27
No. of chain			1	1	1	2	3	2	3	6
Working level			M4	M4	M4	M4	M4	M3	M3	M3
Running test load(Kn)			0.31	0.625	1.25	2.5	3.75	3.75	6.25	12.5
Length of lable(m)			2.5	2.5	2.5	2.5	2.5	2.5	2.5	3
Net weight(Kg)			25	50	55	60	65	78	100	260
Extra weight per meter of extra lift(Kg)			0.55	1.1	1.1	2.2	3.3	3.5	5.3	10.6
Hmin			430	500	520	630	710	800	850	1150
Minimum distance between hooks(mm)
Dimension	A(mm)		210	245	245	245	245	265	265	265
	B(mm)		210	245	245	245	245	265	265	265
	C(mm)		116	158	158	124	124	127	127	338
	D(mm)		104	142	142	176	176	205	205	338
	E(mm)		262	350	350	350	350	393	393	800
	F(mm)		500	600	600	620	620	738	738	950

---
