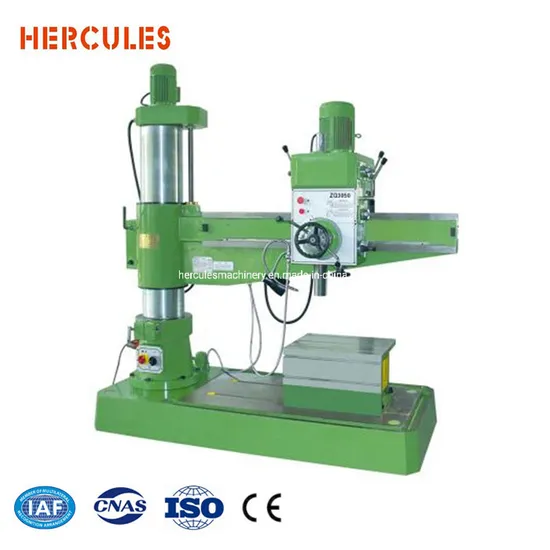

Z3050X16 Taladro Radial Drilling Press Tapping Cutting machine

US$6,500.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3050x16
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
N.W/G.W
2800/2400 kilos
Transport Package
Wood Pallet
Specification
2170*950*2450
Trademark
HERCULES OR OEM
Origin
China
HS Code
8459290000
Production Capacity
3000 PCS/Month

Product Description

Advantage
1. With a wide range of speed and feed, with manual\power and fine feeds.
2. The feed of machines are very easily engaged and disengaged at any time.
3. All parts are easily operated and changed.
4. High quality of casting.
5. Heat treatment for spindle parts, ensuring their high strength and durability.
6. Main gears are machined by gear grinding, ensuring the machine with high precision and low noise.
Model Z3050x16/Z3050x14 Z3040x14/Z3040x11 Z5040
Radial drilling machine Geared head vertical drilling machine
Max. drilling dia Φ50 Iron Φ40/steel Φ32 Φ40
Distance from spindle nose to table surface 260-1050/260-1150 260-1150/260-1050 770
Distance between spindle axis and column surface 360-1600/360-1400 350-1400/ 360-1/1100 350
Spindle travel 220 200 180
Spindle cone 5 4 4
Spindle speed range 78. 135. 240.
350. 590. 1100
78. 130. 240.
380. 660. 1200
50-1450rpm
Spindle speed step 6 6 -
Spindle feeding range 0.10-0.56 0.10-0.25 0.10-0.20
Spindle feeding step 3/6 3 2
Rocker rotary angle 360 360 -
Main motor power 4 2.2 0.85kw/1.5kw
Movements motor power 1.5 1.5/0.75 -
N.W/G.W 2800/2400 2200/1600 465kg/510kg/615kg/650kg
Overall dimension 2170x950x2450/1950x810x2450 1800x810x2300/1500x705x2200 2270x690x1100
Optional power feed for Z5040: Z5040E electronic power feed ; Z5040T Machinery power feed ; Z5040ET Electronic power feed

Pictures for reference only:
