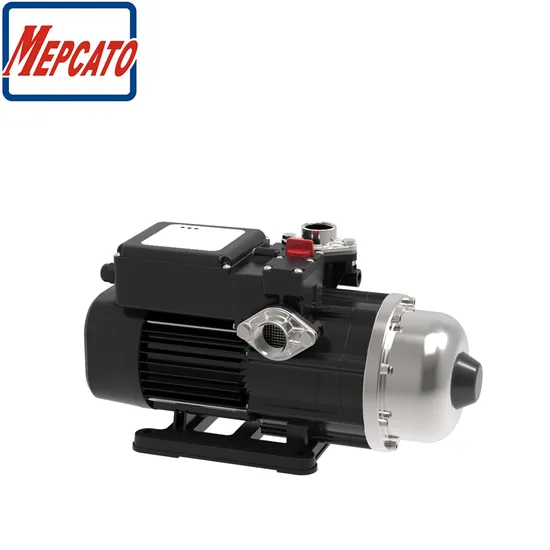

Automatic Stainless Steel Electric High Pressure Boosting Centrifugal Horizontal Surface Water Booster Pump for House Building Water Supply System Bomba De Agua

Product Description

MD Electronic Control Booster Pump
Description

Features
Operation Conditions Operation Conditions
Suitable liquid: potable water or other clean or non-corrosive liquids. Ambient temperature: Max. +40°C Liquid temperature: +4°C ~ +90°C Relative humidity: Max. 85% (RH) Performance

Model	Input Power	Output Power	Voltage/ Frequency	Outlet/ Inlet	Max Suction	Max Head	Max Capacity		L x W x H
	Watt	Watt	V/Hz	inch	m	m	L/min	m3/h	cm
MD300 /MDH300	300	200	220-240V/ 50Hz	1"	6	26	65	3.8	40x18x23.5
MD500/ MDH500	680	500				31	84	5
MD900/ MDH900	950	800				35	105	6.3
MD1100/ MDH1100	1100	950				47	105	6.3	42.5x18.5x23.5

* Voltage and frequency available upon request.

Packaging & Shipping
Company Profile

Our Advantages
1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
