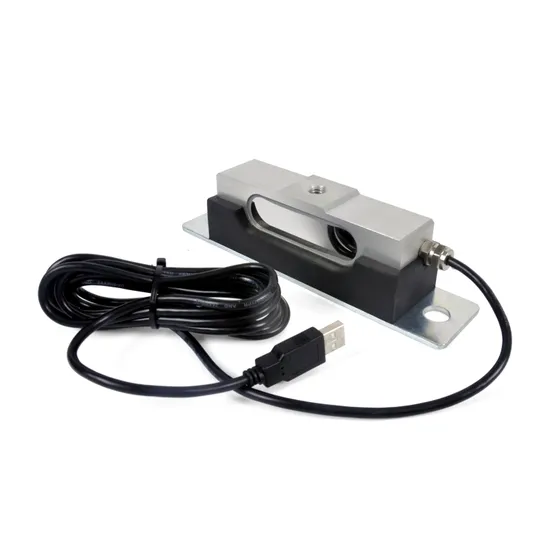

UC-Ap USB 800kg Rectangle Elevator Cabin Mounting Strain Gauge Load Cell

Product Description

UC-AP USB 800kg aerometal contruction rectangle elevator cabin mounting compression load cell
Rated load :800kg rectangle under elevator cabin mounting compression load cell
Description:
SUMMIT Elevator Cabin load cell sensors UC-AP are supplied with their own integral silent-block rubber mounting arrangement to avoid vibration transmission, and specifically designed for installation below the elevator & lift car. They easily mount under the cab and are extremely accurate, The UC-AP series load cell sensor are designed for use with new passenger lift up to 3200kg load (4pcs) in parallal.
Note: Under cab sensors UC-AP series are not recommended for lift modernization or retrofit.
Features:
Anodised aluminium construction
Up to 4x800kg: 3200kg load (4 sensors)
High accuracy,USB interface or plug
Individual sensor can be replaced
Perfect for new installations
Load cell for installation under elevator cabin.
Mounted on a silent-block pad that avoids the transfer of vibrations .
Connected to the unit control of the OMS-560 series and able to install a quantity of 4 cells in parallel, and max up to 8pcs load cell UC-AP
Adjustable locking screw to adjust the unevenness of the bottom of the car during assembly

Model			UC-AP
Range			800KG
Rated Output			2.0±0.02%mV/V
Excitation Voltage			≤15VDC
Input Impedance			1030±10Ω
Out Impedance			1000±2Ω
Insulation Impedance			≥5000MΩ
Safe Overload			150%F.S
Ultimate Overload			200%F.S
Error			±0.5%F.S
Repeatability			±0.5%F.S
Null Balance			±1%F.S
Product Creep			±0.05%F.S/30min
Temperature Effect			±0.02%F.S/10ºC
Opperation Temperature			-30~70ºC
Material			Aerometal
Protect Class			IP67/IP68
Cable Length			2.5M

---
