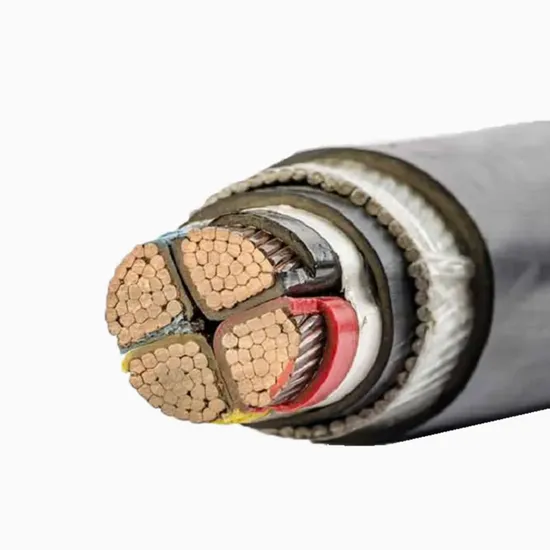

Multiple Core Low Voltage Electric Cable Wdzn-Yjy/Yjy22 Copper/Aluminum Insulated PVC Construction Under-Armour Electrical Cable Wire 35mm2 Power Cable Wire

Product Description

Product Description 0.6/1kV XLPE or PVC or EPR insulated Power Cable
Application: Low voltage power cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
Applicable Standards: IEC60502, GB/T12706-1, BS 6346 HD 603 S1/A2, ICEA S 95-658, AS/NZS 5000, BS 5467, CSA C22.2 NO.51 or the standards agreed by both of the customers and us.
Production Scope:
Nominal Cross-section: 1.5-1000mm2
Rated Voltage: 600/1000V
Cores: 1, 2, 3, 4, 5, 2+1, 3+1, 3+2, 4+1 etc.
Color of insulation: Red, Yellow , Green ,Blue, Black ,yellow/green.
Construction:
Conductor: Copper or aluminum
Insulation: PVC,XLPE,EPR
Inner sheath (Optional): PVC
Armored (optional):
Galvanized steel wire/Aluminum wire/Galvanized steel tape /Aluminum tape /Aluminum alloy interlocked armor.
Outer Sheath: PVC, PE, or other special requirements
* We can design and produce according to client's requirement.
Product Parameters

0.6/1KV 3+1 Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable
Number of Cores and Nominal Area	Thickness of insulation		Approx. Overall Diameter & Weight				Max. DC Resistance at 20ºC		Current Rating (A)
	Phase	Earth/Neutral	Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
Nos×mm2	mm	mm	Overall Dia. mm	Weight kg/km	Overall Dia. mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
3×2.5+1×1.5*	0.7	0.7	17.2	600	17.2	-	7.41	-	38	30	-	-
3×4+1×2.5*	0.7	0.7	17.4	649	17.4	-	4.61	-	50	49	24	17
3×6+1×4*	0.7	0.7	18.6	769	18.6	-	3.08	-	65	55	35	27
3×10+1×6*	0.7	0.7	20.3	989	20.3	763	1.83	3.08	89	78	49	37
3×16+1×10*	0.7	0.7	22.5	1270	22.5	906	1.15	1.91	115	105	66	57
3×25+1×16	0.9	0.7	27.1	1857	27.1	1286	0.727	1.25	150	140	89	77
3×35+1×16	0.9	0.7	29.3	2234	29.3	1483	0.524	0.868	180	170	115	105
3×50+1×25	1.0	0.9	31.9	2828	31.9	1778	0.387	0.641	215	205	135	125
3×70+1×35	1.1	0.9	36.3	3928	36.3	2420	0.268	0.443	265	260	165	155
3×95+1×50	1.1	1.0	40.0	4956	40.0	2904	0.193	0.320	315	320	220	195
3×120+1×70	1.2	1.1	44.4	6408	44.4	3760	0.153	0.253	360	370	240	235
3×150+1×70	1.4	1.1	48.2	7456	48.2	4299	0.124	0.206	405	430	275	280
3×185+1×95	1.6	1.1	52.4	9081	52.4	5062	0.0991	0.164	460	490	310	320
3×240+1×120	1.7	1.2	57.9	11292	57.9	6045	0.0754	0.125	530	580	350	370
3×300+1×150	1.8	1.4	63.0	13648	63.0	7106	0.0601	0.100	590	660	410	440
3×400+1×185	2.0	1.6	71.0	18102	71.0	9457	0.047	0.0778	670	750	460	520
Note:* means round conductor

Four Cores, Copper or Aluminum Conductor, XLPE Insulated steel wire armour PVC sheath Power Cable
Nominal Cross Section mm2	Thickness of Insulation mm	Approx. Overall Diameter & Weight				Max. DC Resistance at 20ºC		Current Rating( A)
		Copper		Aluminium		Copper	Aluminium	Copper		Aluminium
		Overall dia. mm	Weight kg/km	Overall dia. mm	Weight kg/km	Ohm/km	Ohm/km	Under Ground	In Air	Under Ground	In Air
4×1.5*	0.7	17.0	593	-	-	12.1	-	28	21	-	-
4×2.5*	0.7	18.0	663	18.0	600	7.41	-	38	30	24	17
4×4*	0.7	19.1	770	19.1	670	4.61	-	50	49	35	27
4×6*	0.7	20.3	916	20.3	772	3.08	-	65	55	49	37
4×10*	0.7	22.3	1148	22.3	895	1.83	3.08	89	78	66	57
4×16*	0.7	24.5	1472	24.5	1070	1.15	1.91	115	105	89	77
4×25	0.9	27.5	1942	27.5	1317	0.727	1.25	150	140	115	105
4×35	0.9	29.5	2386	29.5	1521	0.524	0.868	180	170	135	125
4×50	1.0	32.9	3206	32.9	2036	0.387	0.641	215	205	165	155
4×70	1.1	36.7	4197	36.7	2502	0.268	0.443	265	260	220	195
4×95	1.1	40.5	5362	40.5	3016	0.193	0.320	315	320	240	235
4×120	1.2	45.3	6908	45.3	3940	0.153	0.253	360	370	275	280
4×150	1.4	50.0	8327	50.0	4683	0.124	0.206	405	430	310	320
4×185	1.6	54.2	10044	54.2	5466	0.0991	0.164	460	490	350	370
4×240	1.7	60.4	12672	60.4	6666	0.0754	0.125	530	580	410	440
4×300	1.8	65.7	15302	65.7	7795	0.0601	0.100	590	660	460	520
4×400	2.0	74.2	19969	74.2	10319	0.047	0.0778	670	750	523	615
Note:* means round conductor

Detailed Photos
Packaging & Shipping
* We can design and produce ACSR according to client's requirement. Any requirement, feel free to contact us!
Company Profile
Established in 1994,Henway Electric Group Inc has now developed into an innovative enterprise with strong R&D ability after 20 years in the
industry. It covers an area of 210,000 square meters and has more than 2,000 employees. It has successively introduced about 2,000 items of
advanced R&D, production and testing equipment. The annual production capacity exceeds 30 billion yuan.
Henway's products can be divided into four categories,namely power cable, wire &cable for electrical equipment, communication cable and building
wire.They include insulated power cable of 220KV and below, Rubber insulated cable of 35KV and below, Aerial insulated cable, Overhead
conductor, Mining cable etc,a total of nearly 30 product series with nearly 4,000 types and 50,000 items.The products are widely used in the fields of infrastructure, utility, hydro-water projects, iron, mining, petroleum, chemical industry,building,subway, high-speed rail,airports,etc.
They have been exported to more than 100 countries around the world.
Henway passed ISO 9001,ISO 14001,OHSAS 18001,and successively acquired TUV certificate,CE certificate,UL certificate and so on.More than 30 years of development and cultivation makes the extraordinary achievements of Henway.Henway is still promoting the enterprise's scale,technology
and brand construction.
Heway Cable-make pioneering efforts and forge ahead !
Certifications
FAQ
1. Q:How does your factory control the quality?
A:Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Q:Can I visit your company?
A: Sure,If you need,we will arrange the driver to pick you up.
3. Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4. Q:Have you ever supplied cables to our country?
A: Henway Cables have been sold to over 100 countries and regions in the world. you can contact me for details.
5. Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7. Q:How long is your delivery time?
A: According to your order's quantity. Usually our lead time is 3 - 20 working days.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 6 hours!!

---
