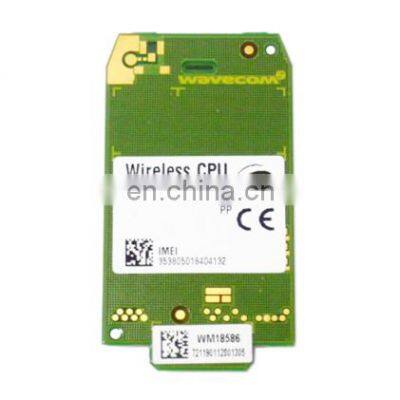

Wavecom wireless CPU Q24PL002

Product Description

Product Description
Descriptionwireless CPU Q24PLUS Q24PL003Q24PL001 is the smallest programmable wireless CPU on the market. Open AT OS running on the ARM9 core for applications running speed is greater than 16MIPS (using VariSpeed). Q24PL001 equipped with up to 44 GPIO, particularly suitable for applications that require a large number of connections. 1.ARM 946E-S, 32bit, 104MHz, 30MIPS2.Open AT memory3.1.5Mbyte ROM, 512kByte RAM 4.128byte Objects5.OS 6.61 version of the6.OPEN AT 4.17 Is compatible with Microsoft Windows Mobile 8 9 kinds of power mode; Real-time OS 9. More than 350 AT commands and API10.RTC with calendar 11. File Transfer (FTP)12.TCP / IP / UDP / DNS13.4-band 850/900/1800/1900MHZ 14 GSM CSD 14.4kbps 15. GPRS multi-slot class12, class B 16. I / F Connector: 60pin 17. Power Supply: Rating 3.6vdc-peak 1.7A 18. Temperature: classA-20 ° C to +55 ° C 19. ClassB-35 ° C to +85 ° C20.ClassA-40 ° C to +85 ° C21.Automatic temperature shut down22.Full RF shielding 23. External Dimensions: 58 × 32 × 6 mm 24 Weight: 20g (including shielding)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
