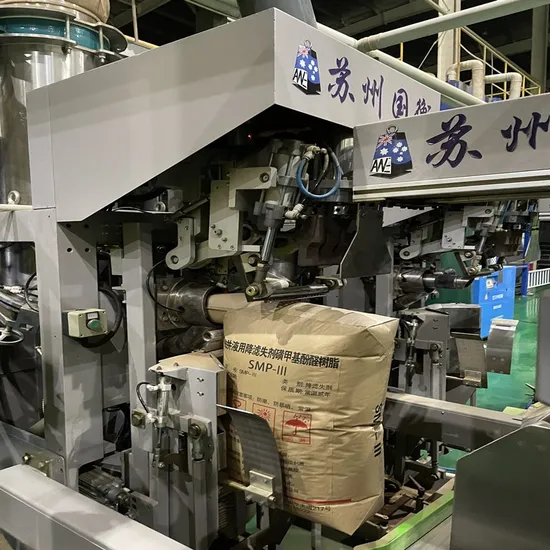

20kg Automatic Pneumatic Valve Bag Cement Dry Mortar Powder Flour Packer Filler

Product Description

20kg Automatic Valve Bag Dry Mortar Packer is designed to is designed to fill free flowing,non clumping dry powder or granulates into valve bag.

A Fully Automatic Packing System includes:
1, PVPE main machine with bag kicker
2, Arm loader
3, Bag magazine
4, Belt conveyer
Packing Material
Notes: Not Limited(Suitable for powders and granulates within 7mm)

Technical Specifications

Bag Size	Valve Size	Valve Length	Bag Width	Bag Height
	50mm(2'')	90-165mm	90-180mm	300-900mm
Packing Scope	5-50 Kg
Filling Speed	5-8 bags per minute,depending on product density,valve size,bag weight,quality of bag, accuracy required and product flow characteristics.
Accuracy	±1% depending on filling speed,product bulk,flow characteristics,particle size,infeed system and bag size.(Typically ±200g @6bags/min@20Kg)
Air System Compressed Air	34CMH@800Kpa(8.0bar),Clean Dry Air
Pressure Range	500Kpa(5 bar)-1000Kpa(10 bar)
Control Air	1CMH @800Kpa(8bar),Clean Dry Air
Size Footprint	800mm(W)×1600mm(D)×2350mm(H)

Partner
Factory
Certifications
Advantages
Constructed from Mild Steel And powered Coated, so it's built to last and makes cleaning a breeze High accuracy via patented load cell technology Easy clean out and changeover of new products without contamination via submarine style rear hatch After Bradwood Packaging installs your25 Kg Paper Sack Fully Automatic Powder Packing Machine you get hands on training and documentation, to maximise your ROI The air flow feed system is capable of high production rates while maintaining good accuracies. Operator friendly easy set and forget controls Universal and industrial components give the machinery extra long life cycles the way machinery should be built Manufactured to comply above and beyond Australian standards Pneumatic and electrical control equipment housed in positive pressure enclosure , ensuring dust free environment. Built from structural steel giving maximum strength with minimal dimensions Additional second stage filling hand wheel for adjusting slow speed flow of product Industrial high strength anti- wearing butterfly valve specifically designed for abrasive products Variable body height to suit your bag sizes and product line The heart of 25 Kg Paper Sack Fully Automatic Powder Packing Machine is your PLC controller interface, it's simple to operate Your operators will have it all at the tip of their fingers. Don't worry about security, because you can add password protected operator access levels The flexible and modular Packaging System can be interfaced with all filling systems and check weighers, so the same control panel operate all packers and weighers. FAQ
Why don't you answer the follwing questions for us to help you find what you want ?
1, the material you want to pack and its size(μm, mm), bulk density(kg/m3)
2, packing weight (kg/bag), capacity (t/day)
3, detailed description of production line

---
