Roll to Roll Laser Technology Digital Label Printing Machine

Product Description

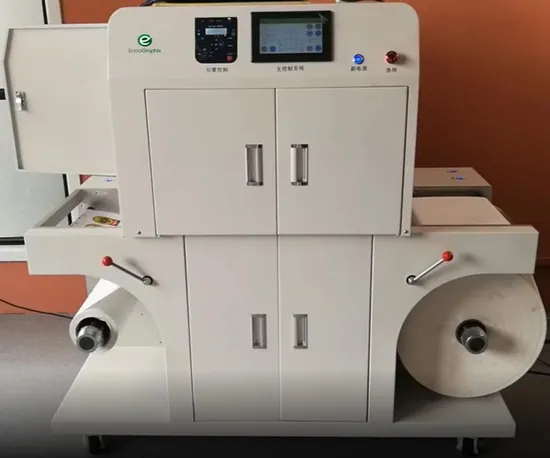

Laser Technology Digital label printing machine
Brief introduction
This machine automatically edits jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested to printing software. You can get best image label and finish the jobs easily.
It running must be with connecting machine
SOFTWARE
The Color DLP VP320C digital label priting machine overturns digital label printing line. It has best advanced LED production printing engine. We paid efforts integrate with much year experience. We get high efficiency and low cost printing machine. Most of printing company and print shop can have it and create a wonderful wealth. AUTO WEB GUIDE TENSION SYSTEFor tension adjustment of all media;Auto calculate the length of feeding;Ultrasonic detect edge of media to avoid media loading twisty;Avoid printing image to stretched and twisted;Increase the lifespam of engine. Technical data

Print speed:	Up to 7.26 meters/min (30ft/min)	Feeder system:	Max. roll media diameter
			Roll media core diameter
Print technology:	4 Color (CMYK) LED technology		Max. weight roll media
Preparing time:	533MHz		Auto tension adjustment system
Printer processor:	less than 28s		Connect media table
			Media processing system
Data port :	(Standard)10BASE-T/100BASE-TX, USB2.0		Printing cooling system
			Feeding adjustment system
	(Options) internet 1000BASE-T, IEEE1284-B	Size:	1400*810*1600mm

Media width:	304mm	Weight:	Print engine:423KGS
Print width:	Min 210mm Max 308mm	Operating environment:	Temperature:20ºC-23ºC
Print length:	Max 1200mm Min 98mm		Humidity: 45-55% RH
Substratetypes:	Paper: Paper, High glossy paper,Matt paper	Power supply:	110-127 VAC,50-60Hz@2800W
	Film: PET, PP, PE, GHS..		220-240 VAC ,50-60Hz@2800W
All of media was tested in special environment, not tested media possible can't be used		Power consumption:	(AC220-240V) sleep 75W
Print quality:	1200*2400 dpi		waiting 100W
Toner supplies:	CMY-18500sheets (A4,5% coverage rate) K-26000sheets (A4, 5% coverage rate)		running 1100W
	( Rated according to ISO/IEC 19798 guidelines)	Monthly running job:	Max.20000sqm (advice)
Drum supplies:	CMYK-100000(print runs according to the operating cycle,Medium size and the direction to change)	Warranty	1 year (excluding high consumable parts)

TipsPublished performance results based on laboratory testing. Individual results may vary.This product is designed and engineered to operate only with genuine iSys Label consumables and certified media substrates. Please contact iSys for the most currentCertified Media List of substrates available.Letter-size sheets at 5% coverage. Printer ships with a 7,500 page set of starter toners,Based on 500 cut-sheet pages/job. iSys Label reserves the right to change product specifications without notice. Trademarks are the property of their respective manufacturer.MOQ
1. Our payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
2. Our lead time?
Usually 30-50 days, depend on machine design and setting.
3. Our service policy?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
4. Our other products?
We also offer other postpress machines for package and label printing companies, like UV coating machine, laminating machine, window patching machine, carton inkjet printing machine and digital label printing machine, thermal paper slitting machine.

---
