High Speed Coil Nail Welding Making Collating Machine Collator/Thread Rolling Machine for Twisting Nail

Product Description

WVT industries

based on values of integrity-based,quality foremost,customer-oriented,service priority

we always work hard to make and supply quality innovated products by our professional,preciseness,enthusiasm and patience.

1. coil nail making production line
including
coil nail making machine
nail thread rolling machine
nail making machine
nail polishing machine etc.

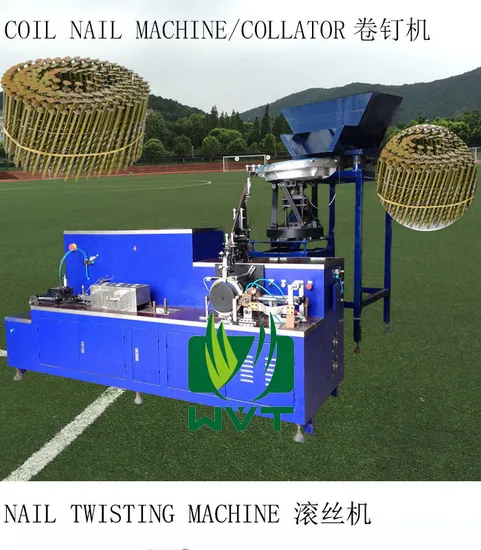

1.1 coil nail making machine
1.1.1 application
-to make painted coil nail,hot galvanized coil nail,electro galvanized coil nail,s.s coil nail,screw coil nail,ring coil nail etc.,
which is used to nail pallet,wooden case for transportation logistics packing industry and build wood structure house in construction industry etc.
1.1.2 coil nail size and machine main technical parameter

model	JDJ-B
welding length	1"-4"(25-100mm)
welding dia.	2.0-3.33mm
welding speed	1200-2800pcs/min
power	8kw
weight	1300kg
dimension	2800*900*1500mm

customized nail length more than 100mm is available
1.1.3 machine advantages
-famous brand electrical component:
Omron PLC control system,Omron frequency converter,
TaiWan WEINVIEW touching screen,Omron optical fiber and amplifier
-powerful welding without missing nail,
-less sparking when welding
1.2 nail thread rolling machine
1.2.1 application
to deform common nail into screw shape or ring shape for strengthing nail adhensive force when used in wooden case,pallet,crate etc
1.2.2 nail size and machine main technical parameter

model	GS-100
nail length	1.2"-4"
nail dia.	1.8-4.1mm
speed	800pcs/min
power	5.5kw
weight	1300kg
dimension	1300*1300*1500mm

customized nail length more than 100mm and diameter is available
1.2.3 machine advantages
high-speed:800pcs/min
-moulds is made by excellent alloy steel to ensure quality and life time.
-twist kinds of nail :common nail,,stainless steel nail etc
1.3. nail making machine

1.3.1 products advantages
--key components (crankshaft,cam,gear) are made of high-grade alloy steel
--plunger structure ensure high-speed,low noise,few impacting force
--nail length may be freely adjusted by adjusting eccentric disc
--nail diameter will be changed by dies
1.3.2 application
to make low-carbon nail: wood pallet iron nail,roofing iron nail; medium-carbon nail: stainless nail, concrete cement nail etc,which is widely used in basic industry, construction industry, packing industry,
decoration industry and daily life etc.
1.3.3 nail size and machine main technical parameter
high speed nail making machine:

model	YH45-90
length	1.8"-3.55"(45-90mm)
dia.	2.0-3.5mm
speed	750 pcs/min.
power	7kw
weight	2800kg
size	2.8*1.55*1.0m

common nail making machine:

model	Z94-5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C	Z94-6C
length	3"-6.4"	2"-4"	1.2"-3"	0.6"-2"	0.35"-1"	4"-8"
dia.	3.1-5.5mm	2.8-4.5mm	1.8-3.4mm	1.2-2.8mm	0.9-1.6mm	3.4-6.5mm
speed	220pcs/min.	280pcs/min.	300pcs/min.	320pcs/min.	460pcs/min.	200pcs/min.
power	5.5kw	4kw	3kw	2.2kw	1.5kw	11kw
weight	2600kg	2000kg	1800kg	1450kg	1200kg	5000kg
size	2.6*1.70*1.7m	2.2*1.6*1.65m	2.0*1.4*1.4m	1.7*1.3*1.4m	1.5*1.3*1.2m	3.25*1.85*1.8m

1.4 . nail polishing machine
auxiliary equipment of nail making machine,
to polish nail,remove greasy dirt ,metal burr in the surface of nail

model	SD-1000	SD-600	SD-400
capacity	1000kg/2 hour	600kg/2 hour	400kg/2 hour
power	7.5mm	4kw	3kw
weight	1100kg	800kg	650pcs/min.
dimension	2.2*1.5*1.5m	2.1*1.05*1.2m	1.8*1.0*1.1m

1.5. nail cutter grinder
auxiliary equipment of nail making machine,
model:M-20
weight:200kgs
dimension:1000*600*1200mm
usage:grind nail cutter
(cutter texture:hard alloy)
1.6 our factory advantages:
-insist on ideas of integrity-based,quality foremost,customer-oriented,service priority
-bring you quality innovated products by our professional,preciseness,enthusiasm and patience.
-provide installation,debugging and training service if need
-life long after sales service is availble forever
-any questions about machine,we will provide quick-response technology service on line or on site
-any parts broken from quality reason in 1 year warranty ,we also will supply spare parts replacement free of cost
2. INDUSTRY/OFFICE STAPLE PIN PRODUCTION LINE
industry/office staple pin production line
including,
stape pin making machine
water-tank wire flattener
wire gluing machine

keywords reference

industry staple pin nail machine

pneumatic staple pin machine

2.1. stape pin making machine

model	U-J
wire dia&qty./trip: J nail :0.9mm&100pcs/strip
speed	80-120pcs/min.
power	5.5kw
weight	1700kg
dimension	1100*2100*1700mm

U-J staple pin size:
10 width : 1006J,1008J,1010J,1013J,1016J
04 width : 408J,410J,413J,416J,419J,422J

model	U-K	U-N
wire dia.&qty/strip	1.18mm&80pcs/strip	1.47mm&68pcs/strip
speed	70-100pcs/min
power	5.5kw
weight	1800kg
dimension	1100*2100*1700mm

-U-K staple pin size :
422K,428K,432K,438K
-U-N staple pin size:
(N13)825, (N15)832, (N17)838,
(N19)845, (N21)850

model	F	T
wire dia.&qty/strip	1.02mm&100pcs/strip	1.4mm&80pcs/strip
speed	100-140pcs/min
power	7.5kw
weight	2000kg
dimension	2000*1000*1650mm

-F staple pin size: F10,F15,F20,F25,F30
-T staple pin size: T38,T50
2.2. wire flattener machine
is used to change raw materials
(galvanized iron wire)
diameter and shape

model	WF-2
wire dia.	2.0-0.68mm
speed	10
power	22kw
weight	2000kg
dimension	3200*1500*900mm

2.3. wire gluing machine
to bond fixed width wire together
by using 2 times glue A and 1 time glue B
on the surface of wire, then dry glued wire

model	C-5
combining width	50-150mm
speed	2-18m/min.
power	12.7kw
weight	1500kg
dimension	21000*900*1500mm

2.4. application
--basic industry
--packing industry for making cardboard,pallet,wooden case
--construction industry for building wooden house
-house decoration
2.5. machine advantages
--integrates to use latest technology of
mechanics,hydraulic and pneumatic,
transmission,computer control system
--famous brand, component
such as:Mitsubishi PLC,Taiwan feeder
--mould is accuratly and stably fixed
spring guide pillar to ensure nail quality.
3. payment terms
T/T,LC,western union or others
4.delivery details
-delivery time: 5days if in stock,15-20days if no stock
-delivery port: shanghai port or others,China
-package style: in wooden cases
contact
Mr.JagyWoo
Website: wvt-industries.en.made-in-china.com

WVT industries

based on values of integrity-based,quality foremost,customer-oriented,service priority

we always work hard to make and supply quality innovated products by our professional,preciseness,enthusiasm and patience.

---
