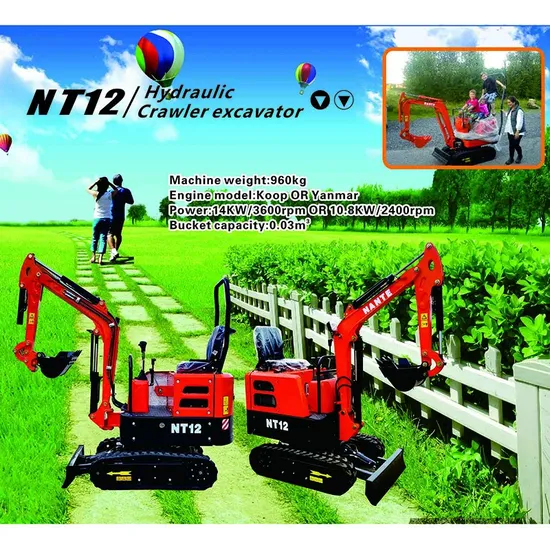

| US$2,830.00-8,086.00 | 1 set (MOQ) |
| Boom length 1480mm | Overall width 900mm |
| Arm length 800mm | Overall height 1570mm |
| Max digging reach 2925mm | Overall Length 2867mm |
| Maxdigging depth 1325mm | Mini ground clearance.245mm |
| Max digging height 2685mm | Ground contactlength of track 900mm |
| Maxdumpingheight 2059mm | Track width 180mm |
| Mini swing radius1289mm | Bucket capacity 0.03m3 |
| Rear swing radius 820mm | Machine weight 960kg |
| Max vertical digging depth 973mm | Max ground digging.range 2827mm |
| Engine model Koop KD292F OR Yanmar 3TNV74FSP | Power 14kw/3600rpmOR10.8kw/2400rpm |
| Hydraulic system 19Mpa | Swing speed 14rpm |
| Travel Speed 0-2.5km/h | Bucket digging force 11KN |
| Arm digging force 9KN | Grade ability ≤30° |
