Basic Info.
Application
Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Crushing Style
Grinding & Impact
Compressive Strength (For Crushing)
100-250MPA
Finished Surface
Gear Process
Transport Package
by Standard Container
Specification
800, 1000, 1200
Production Capacity
100 Sets Per Year
Product Description

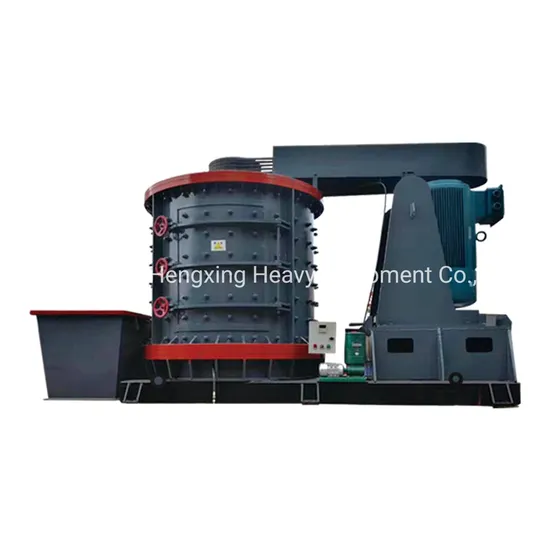

High Quality Vertical Plate Hammer Compound Crusher For Sand Production
Applied material for the ertical Plate Hammer Compound Crusher For Sand Production :
Our compound crusher is mainly used to crush cement raw materials and cement clinker. It can also be applied to crush iron ore, sandstone, plaster, coal gangue, lump coal, limestone, dolomite, granite, basalt, and other stones. Composite crusher is a kind of no screen, adjustable fine crushing machine. It is optimally designed on the basis of advanced fine crushing technology both at home and abroad.
Vertical Plate Hammer Compound Crusher Working principle:
Materials fall into the high-speed rotation impeller from the above of machine, under the action of high-speed centrifugal force, have high-speed impact with another umbrella form materials which flow around the impeller, after they attack each other, then discharged from the bottom, it forms close-circuit and with many times circulation, it can achieve the required product size by screening equipment controlling.
Vertical Plate Hammer Compound Crusher technical parameter:
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
| Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
| Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
| Input size(mm) | 50 | 70 | 100 | 100 | 100 |
| Output size(mm) | 0-5 |
| Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
| Motor Power | 30 | 55 | 75 | 110 | 132 |
| Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
| Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
| Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
Features of Vertical Plate Hammer Compound Crusher :
1.simple structure low operation cost. using the principle of stone strike stone , smaller wear.
2.broken rate is high, energy conservation
3.with fine, coarse grinding function
4.little affected by material moisture content, humidity can reach 8%.
5.working noise is less than 75 dB, less dust pollution.
6.suitable for breaking medium hard, especially hard materials.
7.products are cubic, packing density is big, a very small iron pollution
8.little wearing of the impeller , easy maintenance.
9. high reduction ratio, low power consumption,
10.stable performance and easy maintenance, etc.
For more Vertical Plate Hammer Compound Crusher details,please contact:
>>
