VHF UHF PS700/800MHz Signal Power Tapper 138-960MHz N Female for Firstnet Solution Red Type

Product Description

Product Description

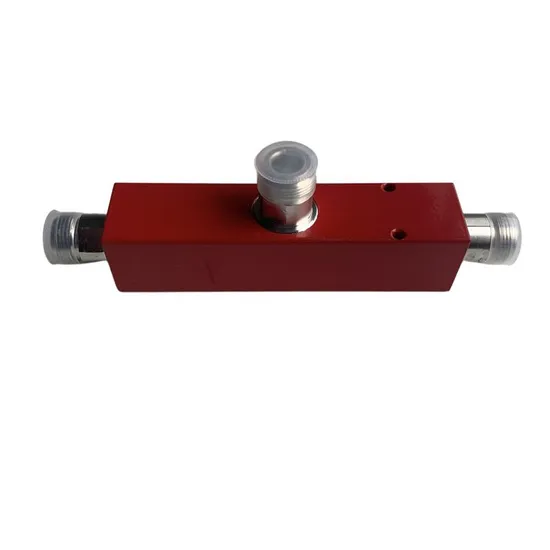

200W Power Tapper(138-960MHz, N Female, IP65)
Tappers operate similarly to directional couplers but with no directivity. Tappers are uniquely specified, as the value in dB is a ratio of the two output signals, not coupling value. For example, a 3:1 or 4.8 dB tapper with a 10 watt input signal would have 7.5 watts output at the mainline port and 2.5 watts output at the tapped port, similar to a 6 dB directional coupler. Signal power tappers, signal taps, power tappers, or just taps, are passive RF devices designed to draw a small portion of power from the main transmission line without causing substantial loss.
Topwave Model TPW-PT-1396-XX-NF(XX means coupling in dB), 138-960MHz N Female RF power tapper feature with low insertion loss, low VSWR and power handling up to 200 watts. Available with N Female, 4.3-10 or 7/16 DIN connectors with a matching coupling port.

Features & Benefits

·Wide Frequency Band Covering 138-960MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors

Electrical & Mechanical Specifications

Model Number	Ratio, nom.	Output Split	Branch Flatness ref. to Input Level, incl Loss(dB)	Input VSWR (max)	Average Power(w)	Humidity
TPW-PT-1396-3-NF	2:1/3.0dB	-2.3/-4.8	±1.3@138-698MHz ±0.8@698-960MHz	1.4:1	200	5-95%
TPW-PT-1396-5-NF	3:1/4.8dB	-1.8/-6.1	±1.3@138-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-6-NF	4:1/6.0dB	-1.6/-7.0	±1.3@138-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-7-NF	4:1/7.0dB	-1.35/-7.8	±1.0@350-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-8-NF	6:1/8.0dB	-1.1/-8.5	±0.8@350-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-10-NF	10:1/10dB	-0.9/-10.5	±1.1@350-698MHz ±1.1@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-13-NF	20:1/13dB	-0.7/-13.0	±1.2@350-698MHz ±1.2@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-15-NF	30:1/15dB	-0.5/-15.3	±1.25@350-698MHz ±1.25@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-20-NF	100:1/20dB	-0.4/-20.1	±1.5@350-698MHz ±1.5@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-30-NF	1000:1/30dB	-0.4/-30.1	±2.0@350-698MHz ±2.0@698-960MHz	1.3:1	200	5-95%

Recommened Products

Factory 380-960MHz /1710-2700MHz 698-2700MHz RF 3dB Low Pim Hybrid 617-803MHz RF Signal Module Double
RF Low Pim Duplexer Diplexer for Radio System Coupler Combiner N Female Connector Unit Duplexer Diplexer 4.3-10 Female

About us

Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

Main Products

Application

Testing Equipment

Packing Details

FAQ

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.

---
