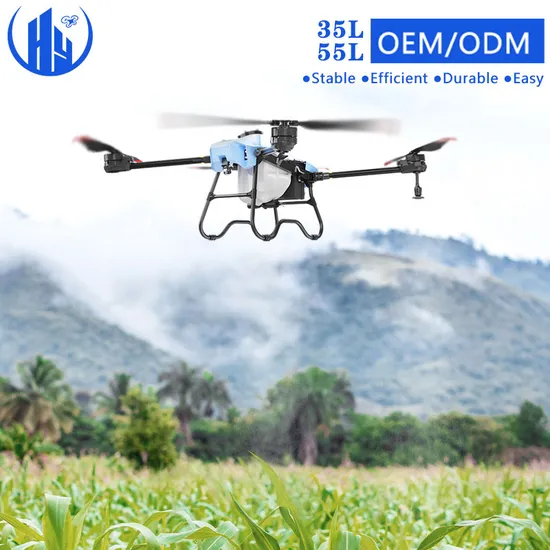

Hf T40 T60 Large Capacity Uav Agro Big Dron Farm Field Cultivos Crop Fumigador Electric Power Agriculture Sprayer Drone for Pest Control Spraying Pesticides

Product Description

Product Parameters
https://nanjinghaojing.en.made-in-china.com/contact-info.html

Basic Parameters
Model	HF T40	HF T60
Material	Aviation carbon fiber+aviation aluminum
Unfolded Size	2560*2460*825mm	3060*3050*860mm
Folded Size	940*730*825mm	1110*850*860mm
Max.Takeoff Weight	72kg	106 kg
Maximum load capacity	35kg	55kg
Aircraft self weight	25 kg	35 kg
Medicine box capacity	35 L	55L
Flight speed	1-10 m/s
Spray width	6-10 m	8-12 m
Endurance	10-13 min (full load)	10-13 min (full load)
Spray flow rate	3-10L/min	4.5 L/min
Atomized particle size	60~90μm	80-250μm
Working efficiency	2 ha/Sorties	3.3 ha/Sorties
Battery capacity	14S 30000mah*1	18S 30000mah *1
Charging time	18-20min
Flight control	Industrial version GPS and controller
Wind protection level	≤5
Power system	68.4V power polymer computer battery

Main Application Scenarios
Product Description

Centrifugal Nozzle
Model	HF T40	HF T60
Spray Width	6-10M	8-12M
Spray flow rate	3-10L/min	4.5 L/min
Atomized particle size	60~90μm	80-250μm
Efficiency	2 ha/Time	3.3 ha/Time

·Efficient Distribution: The centrifugal spray head in drones can distribute substances such as pesticides, powders, suspensions, emulsions, and soluble powders more evenly. This uniformity ensures that every part of the field or area being sprayed receives an equal amount of substance, leading to more effective and efficient usage.
·Adjustable: The size of the spray droplets can be adjusted by controlling the speed of the nozzle, achieving precision agriculture.
·Easy to Replace and Maintain: The centrifugal spray head consists of a centrifugal motor, a spray tube, and a spray disc. The spray disc is separated from the motor, preventing the motor from coming into contact with pesticides, extending the motor's lifespan.
·High Corrosion Resistance and Durability: The spray disc is made of high-quality materials that can withstand acidic and alkaline pesticides.

Pluggable Water Tank
Model	HF T40	HF T60
Medicine box capacity	35L	55L
Spray flow rate	3-10L/min	4.5 L/min
Atomized particle size	60~90μm	80-250μm
Efficiency	2 ha/Time	3.3 ha/Time

1080P HD FPV Camera
Resolution	1080P
FPV	First Person View
Gimbal	With stabilization
Camera Type	Super wide-angle
FOV (Field of View)	Ultra wide-angle
Industrial Grade	Designed for industrial applications
Three-proof	Waterproof, Dustproof, Shockproof

Obstacle Avoidance Radar
Radar Type	Tri-directional
Precision	High Precision
Obstacle Avoidance	Yes

Obstacle avoidance radars can reduce the risk of collision between agricultural drones and obstacles such as trees, wires, and buildings, thereby protecting the safety of drones and the surrounding environment.

Remote Controller
Screen Size	5.5 inch
Cooling System	Built-in cooling system
Run Time	Greater than 6 hours
Charging Time	Less than 2 hours
Network Connectivity	Supports multiple network connection methods such as WiFi, 4G, etc.
Dual Antenna	Dual antenna signals complement each other, ultra-high sensitivity
Signal Enhancement	Greatly enhances communication capability for weak signals
Transmission Distance	Ultra long distance transmission, control radius over 5 km
IP Rating	IP67 protection capability, dustproof, anti-splash

Multilingual Support: Handheld ground station supports language switching, perfect display of over 10 languages including English, Spanish, Russian, etc.

Spreading System (Optional)
Parameter	HF T40	HF T60
Spreading Tank Capacity	50L	70L
Functions	Spreading solid fertilizer, seeds,fish food etc...
Interchangeable System	Integrated spraying system can quickly be swapped with spreading system
Drive Shaft Design	Upper and lower segmented drive shaft design
Screw Design	Externally screwed screws
Disassembly/Assembly	Easily disassembled and assembled from outside
Motor Wiring	External wiring to prevent fertilizers and liquids from entering electric control hatch

Standard Configuration

Company Profile
Why Choose Us
1> We have a wide range of drone products that can meet different requires.
2> We have a long history of drone manufacturing and a strong R&D team. We are constantly improving our products and services to meet the changing needs of our customers.
3> We have a global sales network. We can deliver our products to you quickly and conveniently.
4> We have a competitive price advantage that can help you save costs and increase profits. Our products are affordable and durable, and we also offer discounts and coupons for bulk orders.
6> We have a loyal and satisfied customer base that has given us positive feedback and testimonials.
7> We have a social responsibility and environmental awareness that guide our business philosophy. We aim to help our customers achieve sustainable agriculture and natural resource management with our drones.
8> We have a vision and mission to become the leading drone manufacturer in the world. We are committed to providing our customers with high-quality products and complete solutions that can solve their pain points and create value for them
If you are interested in our products or services, please feel free to contact us anytime. We look forward to hearing from you soon. Thank you for your attention.

---
