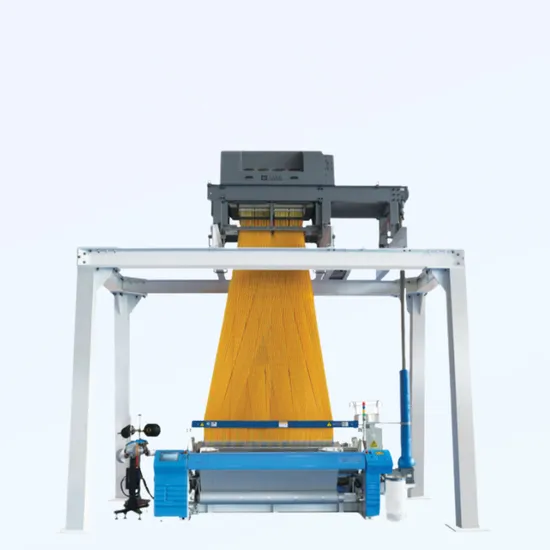

Lenado 2020e High-Efficiency and High-Speed Jacquard Air Jet Machine

Product Description

Technical Specifications
Width	190,210,230,260,280,340,360(cm)
useful reed width	Same as nominal width Max reduction 60cm(190-260cm)
	Same as nominal width Max reduction 80cm(280-360cm)
Speed	1200 rounds per minute
Weft selection	2c/4c/6c/8c
Drive	Superstarting moter
	Direct drive stop by electromagnet brake
Weft insertion	Main and sub-nozzles combined system
	Auxiliary main nozzle
	Profiled reed
Shedding	Positive cam: shaft up to 10
	Dobby: shaft up to 20
	electronic jacquard φ800mm
Let-off Flange Dia	Servo electronic let-off
	Positive easing
	Servo electronic take-up
Take up Max take up Dia.	φ600mm
Take up Pick density	9.8-118 picks/cm
Take up Length count	board dispiay. fixed meassure stop
Take up Side brace	overhead
Beating	Crank beating
	4 links(Read space 190-280cm)
	6 links(Read space 280-360cm)
	intermediate rocking supporter
Filling Supply Stand	Floor-mounted for 4packages(2c), for8 (4c)for10(6c)
Cutter	Mechanical cutter
Lubrication	Oil bath system for main drive parts, centralized lubrication(manual grease)
Auto stop Motion Weft broken	Reflective weft feeler
Auto stop Motion Warp broke	Six rows Electric fleeling system
Others	Stop for selvage and catch cord yarn
Stop cause indication	Message on board, 4-colors lamp for indicating cause
Middle scissors	Mechanical type(Tisser double width)

PRODUCT DISPLAY
SALES AND SERVICE NETWORK
FAQ
Q1:Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department,for that we can understand customer's needs and offer a reasonable price.

Q2:Are you available for on-the-spot invitation?
we do welcome our new and old friends come here to have a visitation.Besides,we would send you our exposition and relative informantion to promote a face-to-face meeting if you'd like to
.
Q3:Is the price offered changeable?
We offer reasonable price for every client,and the price is changeable according to purchasing amount.
Q4:How about the quality?
The main subassembly and raw materials are all supplied by large companies.Key parts are research and developed by our own staff.Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q5:How's the after-sale service?
We offer engineers available to service overseas under merchandisers supervision and translation.

---
