US$2,000.00-6,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Certification
CE, ISO 9001
Transport Package
Export Standard Package
Specification
package: 1530X700X1420MM
Product Description

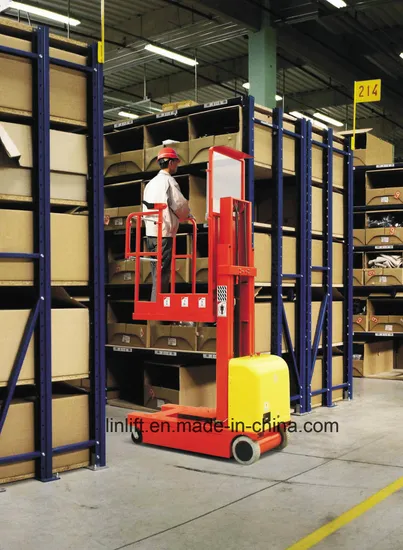

300KGS, lifting height:3m,3,5m,4m,4.5m Electric Aerial Order Picker
Electric order picker is mainly applied in warehouse, workshop, elevator portal, supermarket, station, and other narrow spaces.
| Machine specifications |
| | | | | |
| SPECIFICATION | GOPZ202 | GOPZ302 | GOPZ3.502 |
| Weight | 400KG | 574KG | 588KG |
| Overall height | 1.42m | 1.93m | 2.15m |
| Overall width | 0.7m |
| Overall height | 1.53m |
| Maximum slope | 1.5-3° |
| Gradeability | 30% |
| Maximum Drive Speeds-Stowed | 4Km/h |
| Maximum Drive Speeds-Raised | 1.1Km/h |
| Ground clearance | 0.04m |
| Wheelbase | 1.24m |
| Front wheels | 6in |
| Drive wheel | 250*80 |
| | | | | |
| Electrical specifications |
| | | | | |
| SPECIFICATION | GOPZ202 | GOPZ302 | GOPZ3.502 |
| Batteries | 2-12V/120Ah |
| Integrated charger | 24V/15A |
| Drive motors | 2-24V/0.5KW |
| Lifting motor | / |
| Lifting motor | 24VDC/1.5KW |
| | | | | |
| Platform Data |
| | | | | |
| SPECIFICATION | GOPZ202 | GOPZ302 | GOPZ3.502 |
| S.W.L | 300KG |
| S.W.L on extension | / |
| Platform size | 0.95*0.64m |
| Platform extension size | / |
| Working height | 4m | 5m | 5.5m |
| Plaform floor height | 2m | 3m | 3.5m |
| Up/Down speed | 12/14sec | 20/22sec | 24/26sec |
| | | | | |
| Equipment |
| | | | | |
| Standard equipment | | | |
| Proportional controls | Low voltage alarm | Can Bus Technology |
| Battery charge indicator | Emergency down button | Charger protection |
| Safety brackets | Emergency stop button | Controller temperature protection |
| Overloading limited | | |
| | | |
| Options | | | |
>>
