210ton Toggle Clamping Injection Molding Machine for Power Plug Making with CE

Product Description

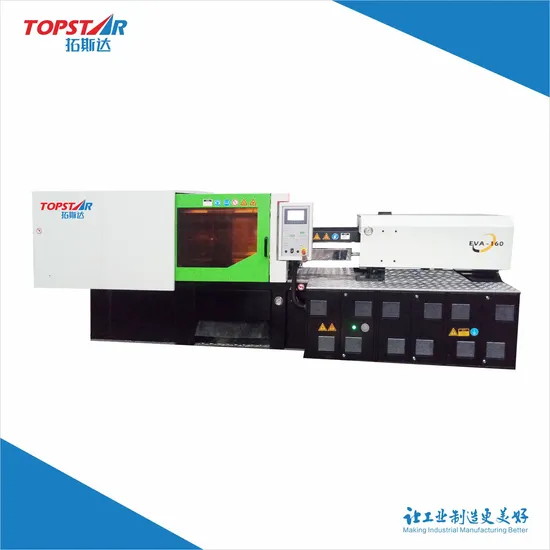

80~600ton Topstar EVA Series Toggle Clamping Injection Molding Machine
Accessory Introduction
1. European KEBA brand controller, high speed response, precision control.
2. Rexroth or Yuken solenoid directional valve for precise metering.
3. Phase, Inovance, Modrol servo motor, energy saving more than 50%.
4. Inovance, Modrol, Techmation servo motor driver, to achieve accurate control.
5. INTERMOT, STAFFA brand melt motor, torque, overload capacity, long life.
6. Sealtech, NOK brand oil seal, durable, sealed well.
7. Germany imports Eckerle gear pump.
Injection Unit

International Designation	UNIT	EVA210
Screw Code	--	A	B	C
Screw Diameter	mm	50	55	60
Injection Pressure	kg/cm*2	1750	1446	1215
Shot Weight(PS)	g	429	519	617
	oz	15.1	18.3	21.8
Screw L:D	--	20	20	18.3
Screw Stroke	mm	240
Theoretical Injection Speed	mm/s	96
Screw Speed	r.p.m	159
Nozzie Contact Force	ton	5.1
Theoretical Injection Rate	cc/sec	188	228	272
Plasticizing Capacity	g/sec	19.8	26	31.5

Clamping Unit

Type of Clamping Unit	Toggle Clamping
Clamping Force	ton	210
Clamping Stroke	mm	460
Max Daylight Opening	mm	1000
Mould Thickness	mm	230-540
Space Between Tie Bars	mm	520*450
Platen Dimensions	mm	770*700
Hydraulic Ejection Force	ton	4.4
Hyfraulic Ejcetion Stoke	mm	130
No.of Ejector Pins	unit	9

General

System Pressure	kg/cm*2	140
Pump Driving Motor	kw	29
Heater Capacity	kw	18
Power Requirement	A	75
Temperature Control Zones	--	5
Tank Capacity	L	450
Machine Weight	ton	6.2
Machine Dimensions	m*m*m	5.8*1.4*1.85

---
