Precision Plate Surface CNC Grinding Machine for Mold Base High Precise Grinder

Product Description

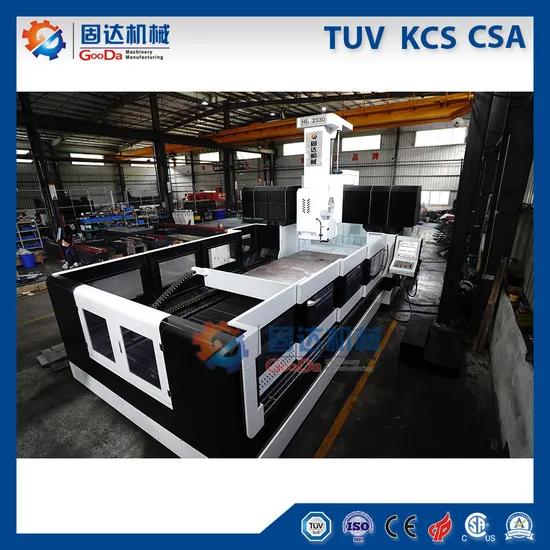

HG-2330NC PORTAL GRINDER/CNC Grinding/Gantry grinding/Heavy Duty Grinding/Fanuc or Siemens System/High Fineness/One Time Set, Finihsed Like Mirror
GooDa CNC gantry grinder.Full worktable flatness accuracy 0.005mm.Powerful hydraulic unit drive worktable.Feed speed can reach 20M/min.Worktable equip magnet plate.Oil cooler to balance hydraulic oil.Big automatical coolant unit to cool grinding plate.Gear type grinding wheel.One time setting friendly operation system,one time load workpiece. #cncgrinder #cncgrindingmachine #cncmachinetools #cncmillingmachine #cncmachining #cncduplexmillingmachine #steelbar #cncgantrymillingmachine #moldbaseshop #steelplateshop #workshop #forsale #Dieset #forgingpart #heavyplate #manifoldblockshop #machining #manufacturing #cnc #steelplate #GooDaMachinery #CNCmilling #CNCverticalmiling #precisionmachining #metalcutting #CNCgrinding #moldbase #kalip #mouldbase #CNCplatemill #CNCplanar #CNCplaner #castbase #quenching #drillingg #distressing #hardguideway #innovation #grinding #manufacturing #engineering #machinists #steelshop #precisionmachining #precisionengineering #aluminumplate #automation #3dprinting #aerospace #automotive #steelbar #steelindustry #steelfabrication #machining #machineshop #sawing
Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, automatic process from rough grinding to finished grinding, which can reduce working strength of operator and increase productivity, maintain high accuracy for dimension and flatness.
Main technical parameters

Specifications of CNC Precision gantry grinding Machine HG-2330NC
Items	Name	Specification
GooDa CNC Precision gantry grinding Machine HG-2330NC		HG-2330NC
Cutting capacity	Control axis number	3
	Rough grinding depth mm	0.05
	Finished grinding depth mm	0.005
	Gantry effective width mm	2300
	Max. grinding length & width mm	3000-2100
	Max thickness of workpiece mm	500
Worktable	Dimensions mm	3000*1800
	Max loading weight Kg	10000
	Magnetic chuck System	Permanent magnet
Bearing Drive Spindle grinding	Spindle size mm:	Ф170
	Spindle speed(Infinitely variable speeds) rpm:	0-1400
	Spindle power Kw	18.5
	Grinding wheel size mm	500*80*203
X axis Hydraulic unit With oil cooler	Hydraulic unit motor power Kw	30
	Hydraulic oil volumn L	1000
	Max. use pressure kg/cm3	35
Y/Z axis	Y/Z axis motor power Kw	3.0/2.0
	Y/Z Feed speed mm/min	5-3000
	Y/Z Min. moving unit mm	0.005
Accuracy	Flatness mm/1000mm	0.01
	Accuracy for dimension mm/1000mm	0.01
	Grinded surface roughness μm	Ra 0.63
Tank capacity	Lubrication oil tank L	3
Coolant unit	Grinding workpiece cooling unit L	100
Others	Power	AC380V/200 45KVA
	Space	6.2*3.5
	Machine net weight KG	35000

Main part of CNC CNC Precision gantry grinding Machine HG-2330NC

Sort	Name	Quantity	Origin	Remark
Machinery	Worktable ball screw	2	Taiwan Hiwin	Steady transmission,High accuracy, Wear-proof
	Guide rail	3	High frequency hardened rail of Quenching	Good bearing, Heavy cutting
	Bearing Drive Spindle	1	Taiwan POSA	Low noise, high strength, Taiwan famous brand
	Flexible stainless steel plate shield of worktable	2	Domestic	High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
	Base casting	1	HT300	Good stability, excellent wear-ability
	Automatic lubricating machine	1	Domestic	Electronic-self-lubrication, Quantitative oil supply to the each part
	Oil line	4	Domestic	Copper tube
	Bearing	18	Japan NACHI	World famous brand, High accuracy, High quality
Electrical appliances	CNC system	1	Japan FANUC	High accuracy Top brand of CNC High accuracy
	Servo motor	2	Japan FANUC	High accuracy Top brand of CNC High accuracy
	Powerful Magnetic chuck System	3	Talis	Famous brand,High magnetic force
	Spindle Motor	1	CTB	Multitronic, Meet the requirements of different processing speed
	AC contactor	1	Schneider	Famous brand, steady property
	Relay	1	Schneider

#cncmachining #steelbar #toolsteel #specialsteel #Dieset #forgingpart #heavyplate #machining #manufacturing #steelplate
#metalcutting #moldbase #kalip #mouldbase #steelshop #precisionmachining #aluminumplate #steelindustry #steelfabrication #kalıp #kalıpelemanları #kalıpplakası #usinagemcnc #usinagem #ferramentaria #ferramenteiro #ferramenteiros #moldes #fresamento #fresadora
Duplex cnc milling machine ,made in china,gained 38 patent certifications
14 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Contact me:Mike Tu (Facebook/Linkedin/Youtube/Instagram)
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.137, F Building Kairuifeng Industial Park, Changdong RD,Banshi Village,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com

---
