Th-8210t Compound Battery Tensile Testing Machine

Product Description

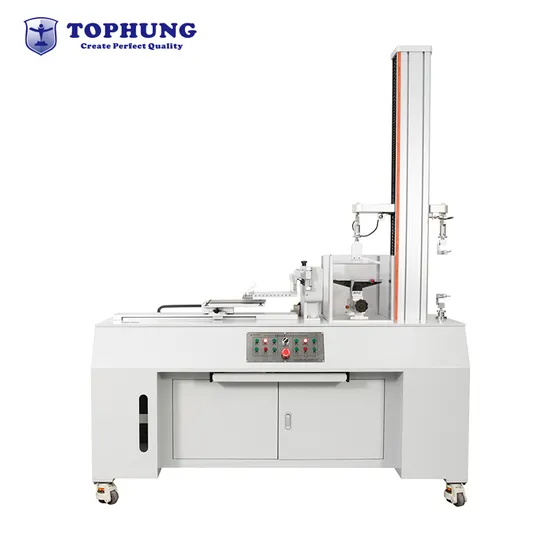

TH-8210T Series of Compound battery tensile testing machine
01 Carrier plate:Install the sample
02 Multichannel Fixture:Fixed sample to ensure testing accuracy
03 Multichannel sensor:High precision load cells imported from USA
04 Fixture:Fixed sample to ensure testing accuracy
05 Load cells:High precision load cells imported from USA
06 Operation panel:Simple and easy to operate
07 Host base:Waterproof and oil resistant, stable and durable
08 Compound caster:Easy to move the machine, fixed machine position
Product Description Test Items:
The testing machine is mainly used for testing solar PV modules, adhesive products and other material samples: Tensile,Stripping,Bending,Tearing and Other precision mechanical tests.
Application industry:
This series of testing machines are widely used in solar photovoltaic industry, colleges and universities, scientific research laboratories, commodity inspection and arbitration, technical supervision and other departments.

Model	TH-8210ST	TH-8210AT
Name	Servo computer composite cell tensile testing machine	Computer composite cell tensile testing machine
Capacity	10N 20N 50N 100N 200N 500N
Display mode	Computer display or (LCD display + computer display)
Power system	Imported servo motor + servo drive	Servo motor + servo drive
Accuracy grade	Better than 0.5 level	Better than 0.5 level
Load range	0.2%-100%FS	0.2%-100%FS
Force error	Within±0.5%	Within±0.5%
Force resolution	1/±500000	1/±500000
Deformation ranger	0.2%-100%FS	0.2%-100%FS
Deformation error	Within±0.5%	Within±0.5%
Deformation resolution	0.0001mm	0.001mm
Displacement error	Within±0.5%	Within±0.5%
Displacement resolution	0.0005mm	0.001mm
Force control rate adjustment range	0.01-10%FS/S	--
Force control rate accuracy	Within±1.0%	--
Deformation rate adjustment range	0.02%-5%FS/S	--
Deformation rate control accuracy	Within±1.0%	--
Displacement speed range	0.001-500mm/min	1.0-500mm/min
Effective test width	230*230mm
Effective space	560mm/700mm
Dimension	1500*580*1722mm
Power	Single-phase 220V 1kW
Weight	about 80kg

Component Introduction
Servo motor High precision: realized closed-loop control of position, speed, and torque; Fast speed: good operation performance, rated speed can reach 2000~3000 revolutions; Adaptability: strong overload resistance,can withstand three times the rated torque load. Load cells High precision: high measurement accuracy;
High stability: stable and durable;
Accuracy level: better than 0.5 level accuracy. Ball screw Smooth movement: low frictional resistance during operation, high sensitivity, no shaking when starting, no crawling phenomenon at low speeds; High transmission efficiency: the transmission efficiency is as high as 90%-98%, which is 2-4 times of the traditional system; Adaptability:strong overload resistance,able to withstand loads three times the rated torque.
Software Introduction

Main interface: TOP-Test material test special software,it is suitable for all kinds of materials, products mechanical properties test. The main interface of the test simultaneously displays: test curve, data list, real-time data, control panel and other information. Simple interface, portable operation, and support for multi-language seamless switching.

Standard Setting interface: TOP-Test material test special software, according to the product test standards, can be set before the test sample information, the test process control mode, running speed, control conditions, and test results of the data list, data arithmetic, test report style and other information, To meet the test requirements of ISO, IEC, EN, GB, ASTM, JIS, DIN and other international general testing standards.

Calibration interface: TOP-Test material test specific software, with force, displacement, velocity, deformation and other equipment calibration functions. Force calibration can simultaneously store multiple sets of calibration data for load cells, and can calibrate up to 12 segments of load cells. The force error is controlled within ± 0.5%, making the test results more accurate.

Unit system interface: TOP-Test material test special software, with flexible unit system, strength, displacement, deformation, strength and other data are available in a variety of units to meet different testing requirements.

Data query: TOP-Test material test special software, with powerful data query function, each test data are stored in the encrypted database, users can query and output historical tests based on search criteria such as test number, batch, time, and personnel, and compare and analyze the test results horizontally/vertically.

Report output: TOP-Test material test specific software, it adopts open test report template, users can write test report styles according to test requirements, call test result database information, and automatically generate test reports. And it can output test reports in formats such as Word, Excel, PDF, etc. The data information is complete, clear, and automatically generated.

Industry Applications

polycrystalline silicon solar cells

monocrystalline silicon solar cells

amorphous silicon solar cells

multi-compound solar cells

Strip stripping

Four-point bending resistance

Backplate peeling

Strip stretching

Certifications Tophung Company takes the development of national scientific and technological infrastructure as its responsibility, focusing on the research and development and production of scientific instruments and equipment. At present, Tophung has 32 authorized patents and has also obtained ISO quality management system certification and EU CE certification. The main series of testing machines produced by Tophung have obtained national patents and all have independent intellectual property rights.
Company Profile
Suzhou Tophung Machine Equipment Co., Ltd. was founded in 2007 and is a professional manufacturer of quality testing machines that integrates research and development, production, sales, and service. For over a decade, the company has been committed to providing excellent testing instruments and overall quality testing solutions for professional material testing, structural testing, and finished product testing to our customers. Tophung products are widely used in industries such as metal materials, new composite materials, solar photovoltaic new energy, wires and cables, automotive parts, plastic products, etc.
Our Mission:
Provide professional testing project to help customer to create perfect quality.
Our Vision:
Continued innovation, leading Tophung towards the world.
Our Values:
Achieve Max benefits for customers.
Our Commitment:
Dedication to improve service and exceed customer expectations.
Our Team:
Tophung has a group of skilled scientific and technological talents, a professional sales team, and a comprehensive after-sales service system, with rich industry testing experience.
Customer Stories:
The equipment developed by Tophung has achieved industry-leading performance, creating value for customers and society while collaborating with German companies such as "CADIS" and TUV, Tianxiang, and Huace. Tophung has long served outstanding enterprises both domestically and internationally, growing together with users and exploring product quality control solutions. It has rich industry testing experience and has been highly recognized by many users in the industry. In 2014, it was awarded the title of "Quality Trustworthy Enterprise" by the Jiangsu Provincial Quality Supervision and Management Center.
Services If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model, and a series of service, person, advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenience.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4. Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
FAQ Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA, we can help you to repair
your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide.

---
