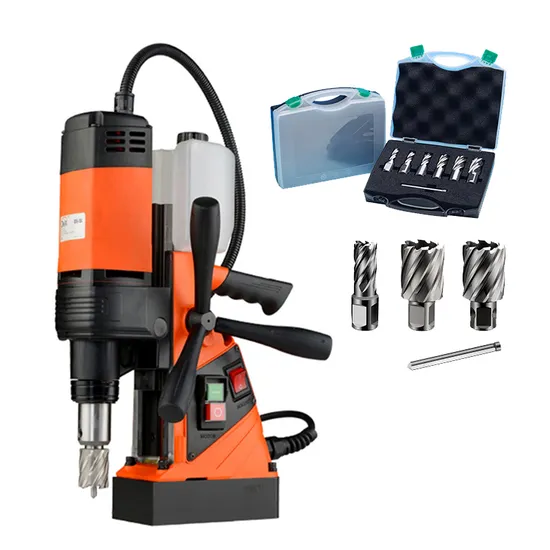

Portable Magnetic Core Drill Machine with CE Certificate

US$285.00-300.00 1 Piece (MOQ)

Basic Info.

Model NO.
DX-35
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Other
Hole Diameter
35mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001, ISO4001
Condition
New
Input Power
1100W
The Max Cutting Depth
50mm
The Max Cutter Capacity
35mm
The Max Diameter of Teist Drill
13mm
Countersunk Drilling
10-35mm
The Min Cutter Depth
10mm
The Type of Shank
19mm
Total Weight
11.0kg
Magnetic Adhesion
10000n
Load Speed
450rpm
Transport Package
Plastic Box
Specification
55*22*45cm
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8459290000
Production Capacity
10000sets/Month

Product Description


Magnetic drill machine is applicable to steel structure drilling, shipping building, paper making, bridge construction, mechanical equipment installation, steel construct engineering, subway construction, large equipment maintenance and all the pipeline engineering.
Product Type
DX-35
Stroke
120mm
Magnetic base bize
167*84*44mm
Input power
1100W
The max cutting depth
50mm (2")
The max cutter capacity diameter
35mm (1-3/8")
Motor can adjust the height to
95mm
The max diameter of twist drill
13mm
The min cutter depth
10mm
Magnetic adhesion
10000N
The type of shank
19.05mm (3/4")
Total weight
11.0kg
Load speed
450rpm
Countersunk drilling
10-35mm

1. Tilt protection design for motor air Inlet avoid liquid or debris falling into the inside of the motor.
2. Two-way sliding rails: special process of Hard wear-resisting, makes the wear-resisting performance increased more than 2 times, Is the guarantee of lower supplies.
Two-way sliding rails, which make the motor height be adjustable according to the different requirement. Stroke up to 210mm.
Rail positioning function, which can make the motor stop at any position to prevent self-rig decline and damage cutter.
3. Design of internal self-lubricating function ensure longer life of gear.
4. Automatic internal cooling system, external cooling ring design to prevent water overflow into the gear box, the overall design makes the appearance more beautiful.
5. Design of overall aerial lifting holes and insurance rope holes guarantee double protection for the safety of the aerial personnel and equipment.
6. Design of overall tilt body ensures its overall rigidity, and improve drilling accuracy.
7. Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life.
Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during drilling operations.
