Product Description
Product Description
Application & Feature:

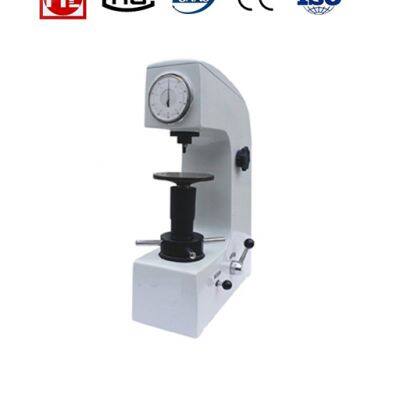

It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
l Manual testing process, no need for electric controlling
l It's steady and reliable for testing of curved surface
l Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
Specifications:
l Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
l Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
l Max. height of test piece: 170mm
l Depth of throat: 135mm
l Min. scale value: 0.5HR
l Dimensions: 466 x 238 x 630mm
l Weight: approx. 65kg
Standard accessories:
l Large flat anvil: 1 pc.
l Small flat anvil: 1 pc.
l V-notch anvil: 1 pc.
l Diamond cone indenter: 1 pc.
l 1/16" steel ball indenter: 1 pc.
l Rockwell standardized block: 5 pcs.
>>
