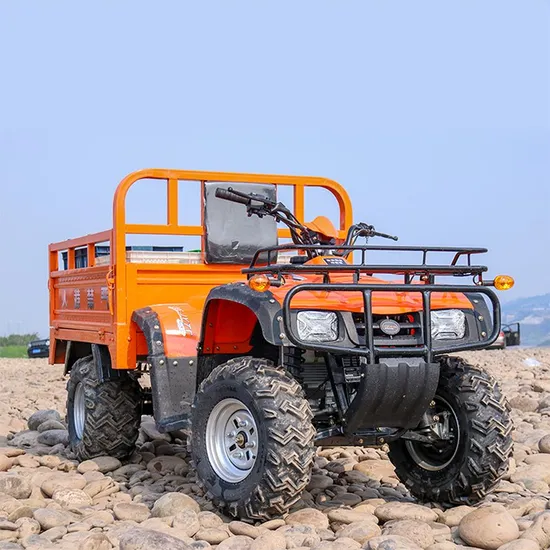

New Tech Good Quality and Reasonable Price 11.5kw 250cc Agricultural ATV&UTV with Trailer

Product Description

Product Description

Model	BS300U-2WD-1.5
Product Size	3030*1200*1450(±50)mm
Cargo Box Size	1500*1100*510(±50)mm
Net Weight	373(±10)kg
Tire distance	Front:830±10mm Rear:930±10mm
Max. Speed	≤65km/h
Brake Control Mode	Front:Hand Rear:Foot
Tire Pressure	Front: 150kPa Raer: 150kPa
Starting system	Electric start
Wheelbase	1950±50mm
Battery	12V32Ah
Max. Turning radius	≤3500mm
Ground clearance	170±10mm
Rated load	400kg
Brake Control Mode	Drum
Rim type	Front: iron wheelhub(5.5*10) Rear: iron wheel hub(8.0*10)
Tire size	Front: 22*8-10 Rear: 22*10-10
Transmission mode	Shaft drive
Fuel tank capacity	9.5L
Gradeability	≤25°
Lubrication method	Pressure splash lubrication
Lubricating oil grade	SF 15W/40(GB 11121-2006)
Pston swept volume	275ml
Max. Power and speed	12kW(6500(1±1.5%)r/min)
Min. No load stable speed	1500r/min
Fuel grade	92#
Engine model	174MN-4A
Engine type	Single cylinder, four stroke, water-cooled, inclined, lower cam
Bore*stroke	74.0×64.0mm
max. Torque and speed	20N·m(4500(1±1.5%)r/min)
Compression ratio	10.0:1
min. Fuel consumption rate	354g/kW·h
Clutch type	Manual oil bath multi chip type

FAQ
1. who are we?We are based in Chongqing, China, start from 2015,sell to Eastern Europe(30.00%),Domestic Market(20.00%),Southeast Asia(12.00%),Africa(12.00%),South America(10.00%),Oceania(5.00%),Mid East(4.00%),Southern Europe(2.50%),South Asia(2.50%),Eastern Asia(1.00%),Western Europe(1.00%). There are total about 501-1000 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Gasoline engine,Gasoline water pump,Gasoline Power tiller,Diesel Power Tiller,Gasoline Generator4. why should you buy from us not from other suppliers?20 years' focusing makes AEROBS being leading well-known brand. We have a huge factory and our own technical research center. Not only manufacturing but also creation will enable us to do more and more for you5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:null;Accepted Payment Type: T/T,L/C,Credit Card,Western Union;Language Spoken:English,Chinese,Russian, Spanish, French

---
