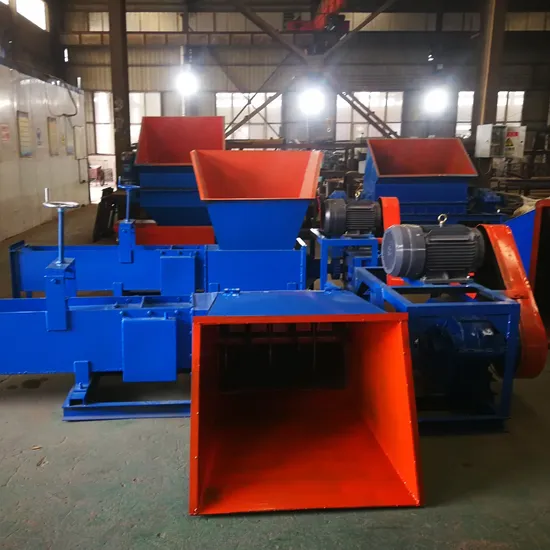

EPS Cold Compactor by Screw Recycling From Loose Foam Into Briquettes

Product Description

EPS cold compactor can crush loose foam by two shafts in hopper and compact loose foam materials by screw at chamber into high density EPS polystyrene briquette.
* Two shredding shafts
* Hard teeth reducer
* Control box
* Shred and compact function
* Optional conveyor
The whole process is by physical compaction,so it is also named as cold compact machine.
The EPS compactor generates a pressure-compressed force to compress foam by the screw spiral rotation,then make the foam scrap into an EPS foam compression blocks. Our Greenland brand foam compressor machines, can reach max up to 50 times compression ratio, greatly reduce the storage and transportation costs of EPS foam, It is a good choice for EPS foam recycling.
Machine Application
Machine Advantage
Machine Parameter

Model	300	400
EPS Briquette Size	300*300mm	400*400mm
Total Power	21kw	28kw
Crushing Motor Power	3 kw*2	3 kw*2
Capacity	150 kg/h	250kg/h
EPS Compressing Ratio	50:1	50:1
Hopper Size	900*750	1000*750
Machine Size	3810*1048*2250 mm	3900*1100*2200mm
Machine Weight	1850kg	2200kg
Power Supply at Default	380V 3phase 50Hz	380V 3phase 50Hz

FAQ
Q: How to compact loose foam ? What is the parts to compact inside machine?
A: There is a screw to compress and convey the shredded foam materials in the chamber.
Q: Can it compact packaging foam box?
A: Yes.
Q: What is the benefit from the machine?
A: It can densify the big size loose foam materials into small size but big density briquette which is easy to transport.And EPS briquette can keep EPS physical characteristics well.
