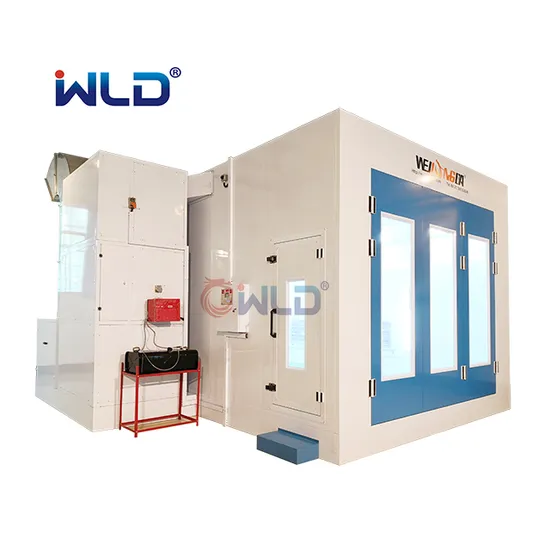

Wld8200 High Quality Auto Automobile Painting Equipment Garage Equipme Car Vehicle Down Draft Spray Spraying Paint Painting Water Based Paint Booth

US$9,000.00
1-9 Sets
US$5,000.00
10+ Sets

Basic Info.

Model NO.
WLD8200
Type
Spray Booth
Certification
CE
Substrate
EPS
Brand
Wld
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Internal Size
6.9X3.9X2.8m
External Size
7X5.45X3.48m
Air Flow
24000 M³/H
Air Speed
0.3~0.5m/S
Power
16kw
Heating Type
Diesel, Infrared Lamp, Natural Gas, LPG
Application
Car, SUV Water Based Painting and Baking
Light
Ceiling & Side
Filters
High Efficiency Filter
Wall Panel
EPS, Rock and PU for Optional
Color
White,Orange,Red,Blue
Basement Height
300mm
Fan Type
Centrifugal Fan
Voltage
380/415/220V/3p/50Hz/60Hz
Certificate
CE
Transport Package
Polyfoam
Specification
Standard Type
Trademark
WLD
Origin
Guangzhou, China
HS Code
8419899090
Production Capacity
2, 000 PCS/Year

Packaging & Delivery

Package Size
600.00cm * 230.00cm * 230.00cm
Package Gross Weight
3000.000kg

Product Description

Wld8200 High Quality Paint Booths/Spray Booths/Car Baking Oven/Car Spraying Oven/Car Painting Oven/Truck Painting Cabin/Bus Painting Room/Car Painting Chamber
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof pane
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Doors: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kgehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 24w LED lamps. Side light has 16 pcs of 24w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.
