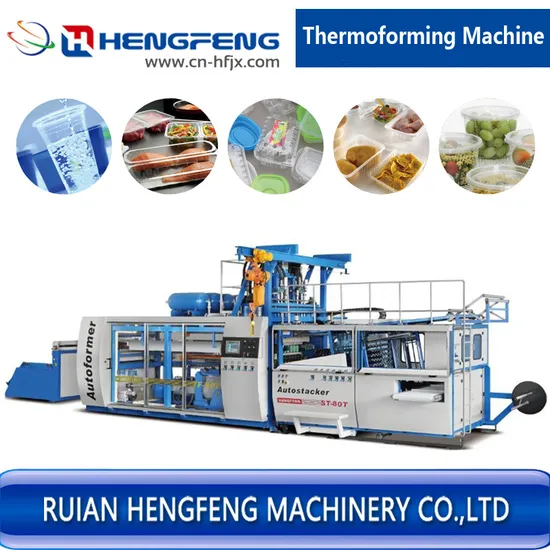

Hftf-80t Series Automatic Thermoforming Machine Is Highly Efficient and Stable (HFTF-80T)

Product Description

HFTF-80T series automatic thermoforming machine is highly efficient and stable(HFTF-80T)
WATCH OUR VODEO IN YOUTUBE:
1.https://hf-sheetmachine.en.made-in-china.com
2.https://hf-sheetmachine.en.made-in-china.com
3. https://youtu.be/M0HywCg41JI

Applicantion:
High Quality Cup Thermoforming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products
Servo motor for plug assist and sheet feeding system
Pick-up stacking system for more sanitary and save labor
Two -station unwinder system
Rapid mould changing device
Mould automatic memory system
PLC design with easy operation.

Main Technical Parameter:
1- Max. Forming Area	762× 470mm
2- Max. Forming Height	180mm
4- Sheet Thickness	0.35-2.0mm
5- Max. Roller Diameter	Φ 1000mm
6- Air Pressure	0.7-0.85mpa
7- Water Consumption	50L/min
8- Air Consumption	3000L/min
9- Max.Speed	42Cycles/min
10- Power (Three Phase Four Wire)	3× 380V+N+PE. 50HZ
11- Heating Power	150kw
12- Main Motor Power	15kw
13- Feeding Motor Power	4.4kw
14- Scrap Rewinding Motor Power	0.55kw
15- Machine Weight	11500kgs
16- Dimension	13000× 4500× 3800mm

PACKAGING AND SHIPPING:
Ruian hengfeng machinery co., LTD.
The employees have many years of experience in manufacturing of plastic machinery, at the same time to absorb the foreign advanced technology and craft, greatly improved the quality of sheet products and high production efficiency. Our main products are: plastic sheet extrusion line, system cup machines, all kinds of plastic forming machine, sheet cutting machine, crusher, cup machine, high-speed punching machine, thermoforming machine punch line, high-speed cup forming machine, etc. This equipment is mainly used in food packaging, industrial packaging,stationery,and electronic industry, etc.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
Please contact us to here:
Mob:(+86)13806538363( Ms Tina Pan)

---
