Three Direction RF Press for Plywood Chair Bending From Saga

Product Description

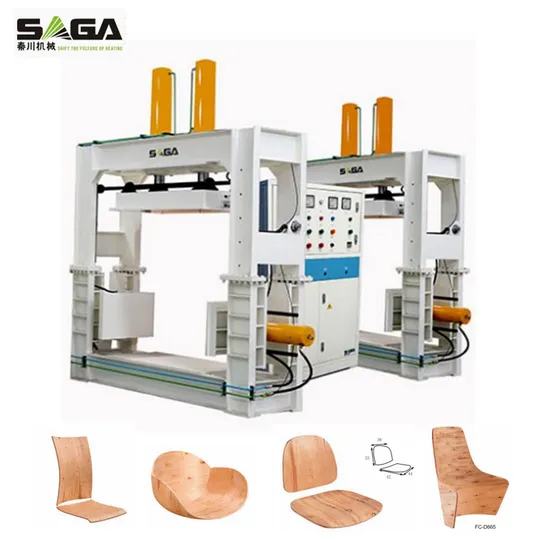

High Frequency Plywood Bending Press Machine From SAGA Machinery
High frequency curved plywood press applies high frequency generator to hydraulic press, by mold and electro, it transfers the high frequency power to the work piece to achieve the function of fast gluing and forming. It's suitable for BENT PLYWOOD CHAIR, BENT OR ARC PLYWOOD FOR THE FURNITURE OR BED or other bent plywood products like CLOTH HANGER OR SURFACE OF MUSICAL INSTRUMENT.
Technicial Parameter

Model	YX80-SA	YX150-SA
HF Generator	20KW,2 OUTPUT	30KW,2 OUTPUT
Oscillation	6.78MHz	6.78MHz
Cylinder	80T,2PCS	150T,2PCS
Strock of Cylinder	600mm	600mm
Press working size	1600*800mm	2500*1300mm
Power of Hydraulic	7.5KW	7.5KW
Opening of Plate	1100mm	1100mm
Packing	Foam and plastic	Foam and plastic
Delivery	40 working days	40 working days
Overall Size	2300*800*2200mm	2900*1300*2200mm
Gross Weight	8T	17T

Actual Working
Application
Charactor of High Frequency Curved Plywood Press
A.Fast and uniformly heating
B.Bending shape is stable, not easy to change de-lamination.
C.High frequency power is a selectively heating power, it concentrates only on water or glue. wood cannot consume high frequency power, so it is effective and power saving.
D.Wooden or MDF mold used, much economic than metal mold if shape is frequency changed.
The Wooden Mold
High Frequency Generator
High frequency generator(Radio frequency generator) is a plant which can turn normal electric power to high frequency(electronic-magnetic) power, apply this power to the load equipment or electrode, the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequency change of the electronic-magnetic power, thus cause suddenly friction, this friction between molecule makes the temperature raises, thus the water vaporized and glue bond. High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core pant for high frequency machinery.
Power:50Hz, 3Phase 4Wire;Input Power: 30/40/70KVA; Output Power: 20/30/50KW; Oscillation:6.78MHz;Various Protections; Tuning Vacuum Capacitor; Forced wind cooling; 2output
1)High Frequency Oscillator (radio frequency generator, high frequency generator) is a plant which can turn normal electric power to high frequency(electromagnetic) power.
2) is suitable for fast curing of glue or water.
3)high Frequency Oscillator is suitable for curved plywood forming or wood panel jointing or hard wood drying.
4)t is a core plant for high frequency machinery.
Machine Details
Our Certificate
About Us
FAQ
1.How about the press table size?
Our standard size are 1600x800mm and 2500x1300mm.Customized size is also available.
2.What are included in 1 set machine?
The working type of the machine is "one drive two",that means one set HF generator drives two sets hydraulic press machine.
3.What is the material of the mold?
It is wood.
4.How long does it take to press one chair seat?
For standard small chair,it wil take around 3-4 minutes.

---
