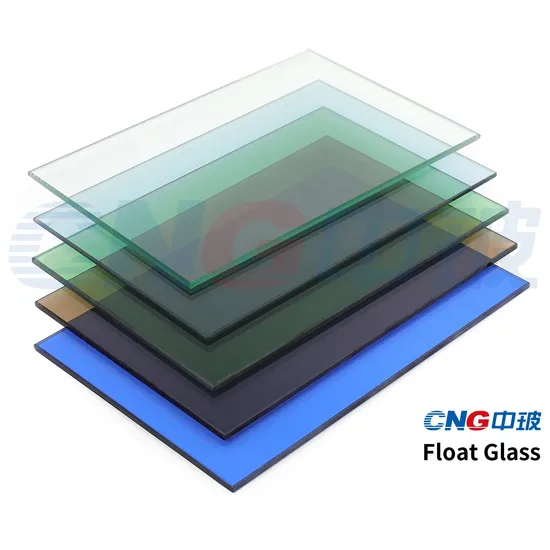

Float Reflective Low E Tempered/Laminated / Double Glazing Insulated / Toughened / Building / Window Glass / Shower Door Glass

Product Description

★CNG Glass is ordinary float glass with a metallic coating which is fused to the glass at 1200ºC.The special metallic coating also provides a one-way mirror effect,preventing visibility from the outside and thus preserving privacy of the building. It is known for its durability.
★On-line Reflective Glass is processed a chemical vapor deposition technology(CVD) with metallic coating applied to it during float glass manufacture.It is known for its durability. It can be easily cut,heat strengthened or toughened according to different requirements.
★Off-line reflective Glass is produced by the magnetron sputtered vacuum deposition technique (MSVD)in the vacuum chambers with a homogeneous film metal compound directly on float glass.Different thickness of this metallic film coated will lead to various colors and high thermal performance of reflective glass products. PRODUCT FEATURES
♠Solar control performance,UV resistance
♠Excellent flat surface
♠High light reflectance and unique appearance
♠Low light transmittance, improves visual comfort against ♠direct sunlight
♠Enabled any further fabrication
♠Low light transmittance provides internal privacy
♠Adding aesthetic senses to building appearance
♠Filters glittering sunlightPRODUCT APPLICATION
♣Windows And Doors
♣Solariums
♣Curtain Walls And Facades
♣Skylights
♣Industrial Buildings
♣Apartment Blocks
♣Handrails And Balustrades
♣Furniture COMPANY PROFILEWeihai CNG Coated Glass Co., Ltd. is a professional glass manufactuer and supplier. We have been supplying various glass products, such as tinted float glass, reflective glass ,LOW-E glass, temperable mirror glass, ultra clear float glass etc.With a long term manufacturing experience and sincerely business cooperation, select us, you will gain more. We would like to be attentively to listen, to learn and to understand your demand, We expect to help people live happily with our glass products , and make the world better. EXHIBITION CERTIFICATIONS PACKING & DELIVERY FAQ
1. Why choose CNG Glass
Our company was founded in 1965. With more than 20 years of glass export experience, we have well-found glass processing facilities and professional technology to guarantee the quality and service
2. Do you offer a free sample
We can offer free samples, but freight costs would be customers side
3. Are you a factory or trading company
We are a manufacturer with designing, manufacturing, marketing, and exporting. ODM or OEM is acceptable.
4. Do you provide after-sales
Yes, we can provide services from sales, manufacture, installation, and all the technical support.
5. What package do you use for products
We have flexible packing ways according to different products, including following the package method
Packing:Standard sea worthy export packing with paper or powder inter layer between sheets.

Online Solar Control Online Coated Glass Performance Parameters
No.	Product Name	Transmittance	UV light transmittance	Visible light transmittance	Visible light reflectance	Direct sunlight transmittance	Direct sunlight reflectance	Total solar energy transmittance	Shadowing Coefficient (SC)	radiance	SHGC	K (summer daytime) w/m2.k	K (winter daytime) w/m2.k
1	5mm Bluestar Grey	VT-25%	4.68%	24.93%	17.13%	32.67%	15.22%	45.24%	0.51	0.84	0.482	5.272	5.843
2	6mm Bluestar Grey	VT-20%	3.50%	20.82%	14.09%	27.39%	12.71%	41.83%	0.47	0.84	0.455	5.243	5.808
3	8mm Bluestar Grey	VT-13%	2.08%	13.77%	12.53%	18.75%	11.34%	33.18%	0.37	0.84	0.402	5.185	5.740
4	4mm Ford Blue	VT-33%	7.81%	32.70%	38.60%	42.20%	26.20%	50.60%	0.582	0.84	0.506	-----	5.360
5	5mm Ford Blue	VT-28%	5.82%	27.20%	42.80%	35.40%	29.30%	44.80%	0.515	0.84	0.448	-----	5.390
6	6mm Ford Blue	VT-23%	4.49%	22.90%	45.70%	30.50%	31.30%	40.70%	0.468	0.84	0.407	-----	5.360
7	8mm Ford Blue	VT-18%	3.39%	17.70%	49.10%	23.60%	34.20%	34.90%	0.401	0.84	0.349	-----	5.300
8	5mm Dark Green	VT-28%	4.36%	27.31%	26.52%	28.14%	16.63%	41.46%	0.47	0.84	0.446	5.272	5.843
9	6mm Dark Green	VT-25%	4.06%	25.40%	24.35%	26.15%	15.15%	40.30%	0.45	0.84	0.438	5.243	5.808
10	5mm Clear Low-E	VT-80%	39.94%	80.17%	10.45%	68.81%	10.15%	72.32%	0.81	0.19	0.723	2.939	3.777
11	6mm Clear Low-E	VT-77%	36.53%	78.89%	8.86%	65.89%	9.20%	69.93%	0.79	0.16	0.7	2.802	3.658
12	5mm Dark Blue	VT-20%	12.07%	23.35%	13.46%	43.49%	18.44%	52.68%	0.59	0.84	0.546	5.272	5.843
13	6mm Dark Blue	VT-16%	10.23%	18.79%	11.79%	38.68%	17.19%	49.32%	0.55	0.84	0.517	5.243	5.808
14	5mm F Green	VT-30%	3.13%	28.40%	35.11%	24.11%	19.91%	37.61%	0.42	0.84	0.409	5.272	5.843
15	6mm F Green	VT-25%	2.76%	26.43%	34.12%	20.76%	18.66%	35.37%	0.4	0.84	0.39	5.243	5.808
16	8mm F Green	VT-20%	1.50%	19.78%	32.27%	13.62%	16.47%	30.48%	0.34	0.84	0.351	5.185	5.74
17	5mm Modern Grey	VT-25%	3.85%	24.96%	15.82%	32.98%	14.02%	45.76%	0.51	0.84	0.488	5.272	5.843
18	6mm Modern Grey	VT-20%	3.05%	21.26%	15.36%	28.01%	13.37%	42.15%	0.47	0.84	0.457	5.243	5.808
19	5mm Weihai Blue	VT-31%	4.39%	28.47%	31.89%	30.29%	22.01%	41.80%	0.47	0.84	0.445	5.256	5.824
20	6mm Weihai Blue	VT-28%	3.54%	25.33%	31.63%	26.14%	21.17%	38.85%	0.44	0.84	0.419	5.243	5.808
21	5mm Clear	VT-55%	13.87%	50.58%	34.10%	58.00%	25.85%	61.89%	0.7	0.84	0.625	5.272	5.843
22	6mm Clear	VT-50%	9.47%	42.75%	38.11%	52.31%	28.29%	56.99%	0.64	0.84	0.578	5.243	5.808
23	5mm Euro Bronze	VT-25%	2.73%	25.78%	16.60%	35.79%	14.70%	47.73%	0.54	0.84	0.505	5.272	5.843
24	6mm Euro Bronze	VT-20%	2.03%	20.45%	16.32%	29.70%	14.85%	43.08%	0.48	0.84	0.463	5.243	5.808

---
