Haynes25 Alloy Wire L605 Wire High Temperature Alloy Wire

Product Description

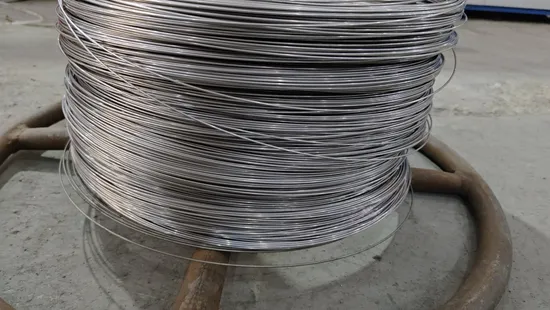

Haynes25 alloy wire /L605 wire high temperture alloy wire
we can produce large quantites of Haynes25 alloy wire /L605 wire from 0.08mm to 8mm
we have 8 sets of 500 kgs vacuum furnace, 30 sets of 100 kgs vacuum furnace, 200 sets drawing machines .
State
1. hard wire
2. half hard wire
3.soft hard wire
Haynes25 Alloy Wire / L605 Wire / High Temperature Wire Overview Haynes 25 Alloy Wire, also known as L605 Wire, is a high-performance cobalt-nickel-chromium-tungsten alloy wire. It is designed for high-temperature applications where excellent mechanical strength and resistance to oxidation and sulfidation are required.
Technical Specifications Chemical Composition:
Carbon (C): 0.05%-0.15% Chromium (Cr): 19.00%-21.00% Nickel (Ni): 9.00%-11.00% Tungsten (W): 14.00%-16.00% Iron (Fe): ≤3.00% Manganese (Mn): 1.00%-2.00% Cobalt (Co): Balance. Physical Properties:
Density: 9.13 g/cm³ (0.330 lb/in³) Melting Point: 1410°C (2570°F) Mechanical Properties:
Tensile Strength: 900-1800 N/mm² (131-261 ksi) Operating Temperature Range: -200°C to +900°C (-330°F to +1650°F) Hardness: Typically 250 BHN, max 275 BHN. Applications Haynes 25 Alloy Wire is widely used in:
Aerospace: Gas turbine engine components, combustion chambers, afterburners, turbine blades, and bearing races. Industrial Furnaces: Components such as muffles and liners that require high-temperature resistance. Medical: Heart valves and other medical implants due to its biocompatibility and strength. Other High-Temperature Environments: Springs, thermocouple wires, and other applications where high-temperature stability is crucial. Advantages High-Temperature Strength: Maintains mechanical strength at elevated temperatures. Oxidation Resistance: Resistant to oxidation up to 1800°F (980°C) and excellent resistance to sulfidation. Formability and Weldability: Good forming characteristics and can be welded using conventional methods. Availability and Forms Haynes 25 Alloy Wire is available in various forms, including:
Round wire Bars or lengths Flat wire Shaped wire Rope/Strand. Conclusion Haynes 25 Alloy Wire (L605) is a versatile and high-performance material suitable for demanding high-temperature applications. Its excellent mechanical properties, oxidation resistance, and formability make it a preferred choice in aerospace, industrial, and medical fields.

---
