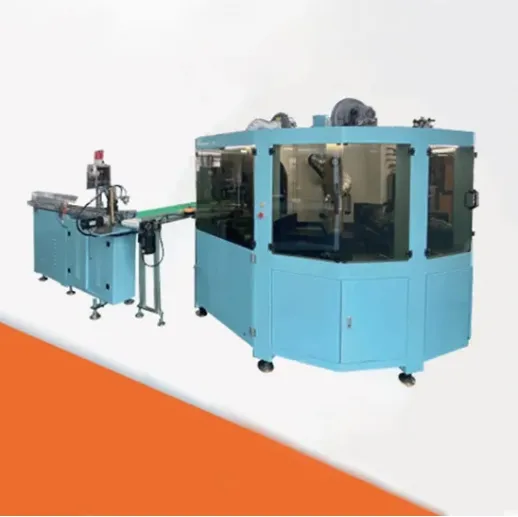

Automatic Stop Cylinder Screen Printing Machine

Product Description

McLantis auto series cylinder screen printing press is one kind of high-precision, high speed fully automatic single sheet screen printing machine, which has wide application range to 120-250g/m2 soft materials and semi soft materials (paper, transfer paper, white board and different self-adhesive paper).
The machine is capable of for perfect performance for many kinds of printing, especially for color process printing like gold and silver color for UV metal ink. The machine is mostly used for the transfer printing for trade marks of the ceramic, glass, porcelain enamel, bicycle, sewing machine, furniture, lacquer work, and packing and presentation printing for soft paper box, paperboard, picture poster, etc.
The print products of the machine have the advane, of color richness, for perfect 3-dimension performance, good Ink coverage, according to the 30-40 micron Ink thickness.

Model	SCREENMAC
	AUTO720	AUTO780	AUTO1020
Max. paper sheet	720*500mm	780*520mm	1020*720mm
Min. paper sheet	350*270mm	350*270mm	560*350mm
Max. printing area	720*500mm	780*520mm	1020*700mm
Thickness of paper	120-250g/m2
Frame Size	880*880mm	940*940mm	1280mm*1140mm
Printing speed	1000-3600pcs/h	1000-3300pcs/h	1000-2500pcs/h
Main power	8.59kw	8.59kw	8.79kw

---
