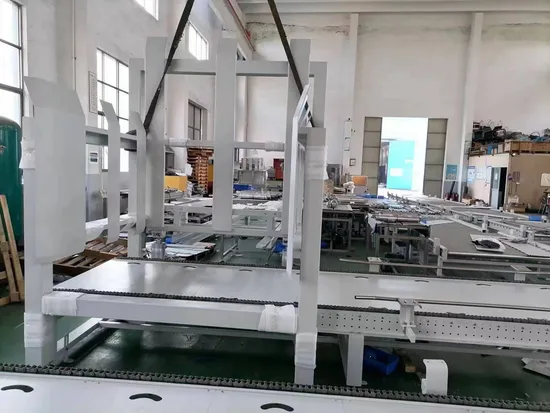

Customized End of Line Palletizing System Pallet Dispenser with Crossover Roller Conveyor

Product Description

Customized end of line palletizing system pallet dispenser with crossover roller conveyor JOINSUN
A crossover conveyor is a machine designed to automatically shift direction device. There are several different types of crossover conveyor due to the driven way 1. Airbag 2. Pneumatic cylinder 3. Hydraulic cylinder 4. Motor lifting
The mechanical structure can be chain lift, roller driving or Roller lift, chain driving.
By automating the pallet hanlding process, it can solve the connection and direction shift in the corner, can save time, reduce labor costs, and increse efficiency.
Specification

Model	KP-GT01-1
Suitable pallet types	Wooden or plastic pallets
Suitable pallet size	1200*1000mm
Frame material	Carbon Steel, surface painting
Linear guide rail	Hiwin or same class
C profile guide	3t/6t steel sheet bending, surface painting
Air source	0.6-0.8Mpa
Cylinder	Fes,to , SMC cylinder or Airbag
Conveyor feeding height	500-600 +/-50mm depends on per project

Specification for pallet roller conveyor

Conveyor width*height	According to the drawing
Roller diameter	80mm Inte rroll
Roller spacing	125mm
Roller material	Galvanized
Motor Brand	S E W
Conveyor specification	Details see the drawing
Frame material	Carbon Steel, powder coating Cream white color
Loading weight	800kg per pallet
Speed	10-15m/min
Capacity	180 pallets /hour

Welcome to contact us for the delivery time, proposal, customer cases and quote!

---
