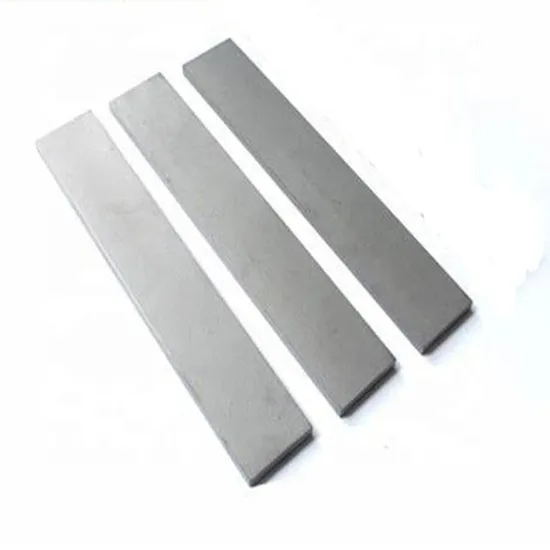

Customized Tungsten Bar Hip Sintered Tungsten Carbide Flat Bars Carbide Strip

Product Description

Product Description 1.High Quality carbide strips ISO9001-2015 certified
2.Automatic pressing, HIP sintering technology
3.Good abrasion resistance and high hardness
4.Prompt aftersales service within 24 hours
5.OEM and customzied order are accepted

100% virgin micro-grain tungsten carbide;
Outstanding wear, impact, corrosion, and high-temperature resistance;
Excellent chemical stability (acid, alkali, oxidation resistance);
Varied grades and specifications;
Ground and unground;
High and consistent quality;
Customization services.
Applications:
Blanking punch dies, woodworking cutters, shredder blades, machine tool guideway. Material performance characteristics 1. Using high-quality ultrafine tungsten carbide and imported cobalt powder as raw materials.
2. The Vanguard International Semiconductor Corporation advanced low-pressure sintering technology is adopted for standardized production.
3. Has high strength and hardness.
4. It has excellent red hardness, good wear resistance, high elastic modulus, high bending strength, good chemical stability (acid, alkali, high-temperature oxidation resistance), good impact toughness, low expansion coefficient, and similar thermal conductivity and conductivity to iron and its alloys.
5. High tech precision advanced equipment: imported from Germany with a 10MPa low-pressure sintering furnace for sintering.
6. Unique new process: vacuum high-temperature high-pressure sintering. The final stage of the product adopts pressure sintering, which greatly reduces porosity, improves compactness, and greatly improves the mechanical properties of the product.
7. Product features: Multiple material grades, suitable for different usage needs; Complete specifications and precise blank dimensions (reducing processing volume and improving production efficiency).

material	tungsten carbide
Grain size	0.8-1.5micron
Grade	K10,K20A,YG8X,YG11,K20,G30,YG6X,YG10.2 ,other grade can be offered by customers' request
Size	metric system size or british system size. Such as L165 xW6 xT3,L12 xW1/4 xT1/4 etc,can be customized
Surface treatment	blank or grinding
Standard length	100/165/310mm,other length also can be offered
Sinter	HIP sintering
Feature	easy brazing; good red hardness;high wear resistance and hardness;When it's with grinding, Precision Ground and polished

Physical and mechanical properties of grades for tungsten carbide strips,tungsten carbide flat bar,carbide plates

Grade	ISO	DENSITY (g/cm3)	TRS (N/mm²)	HARDNESS (HRA)	APPLICATION
YG7	K10	14.8	1800	90.5	Better wear-resistance than YG6, suita- ble for machining hard wood, original wo- od as well as aluminum section bar, brass rod and cast iron.
YG6	K20	14.9	1780	90.5	Excellent wear Resistance and strong rigidity, suitable for the machining of cast iron, non-ferrous metal as well as bamboo and wood.
YG8	K20	14.7	1900	89	Good wear Resistance, excellent antiimp- act and antI-knocking properties, suitable for the manufacturing of wood working bl ade and machining ferrous and non-ferrous metal.
YG8A	K20	14.7	2000	89.5	Good wear Resistance, excellent anti-im pact and antiknocking properties, suitable for the manufacturing of wood working blade and machining ferrous and non-ferr ous metal.
YG10X	K40	14.5	2400	91	Suitable for processing hard wood, veneer board, PCB, PVC and metals.
YG12C	K40	14.3	2500	87.4	Suitable for crashing the cobblestone, gra nite, construction materials, etc.

Detailed Photos
Packaging & Shipping
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a Group company , manufacturer of tungsten carbide since 1989 and
professinal own export company,and we We can supply 20 tons tungsten carbide product per month. We can provide customized carbide products as per your requirements.

Q: How long is your delivery time?
A: Generally,it will take 7 to 15 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.

Q: Do you provide samples? iIs it free or charged?
A:Yes, we can offer a sample for free charge but the freight is at customers' cost.

Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products before delivery.
Contact To offer you the quick and professional service,please provide us the following information:

Tungsten carbide grades
Type / dimension / draft
Available tolerance
Available surface toughness
If you have no idea above information,please contact us freely
