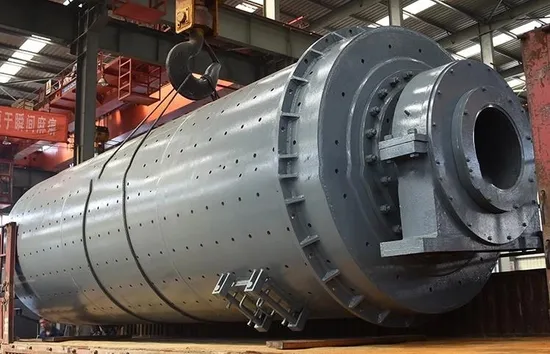

Dry Type Tube Ball Mill for Clinker Grinding

Product Description

Dry Type Tube Ball Mill For Clinker Grinding Clinker ball mill Usage and application:
The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. It plays a vital role in the cement production line and cement production process. Cement mills are mainly used in cement, silicate products, new building materials, refractory materials, glass ceramics, and other production industries.
Clinker ball mill Working principle:
When the cylinder of the grinding mill rotates driven by the transmission gear, under the inertial centrifugal force, the grinding media will stick onto the lining board on the internal wall of the cylinder of the grinding mill and rotate together with the cylinder. The grinding media are brought to a certain height, and then fall down under the gravity, and during this process, the grinding media will crush the materials inside the cylinder, and at the same time the grinding media repeatedly move up and down inside the rotating grinding mill and will have sliding and rolling movement, so that the grinding media, the lining board and the materials to be ground will grind with each other, so that the materials are crushed to a finer granularity.
Clinker ball mill Features:
Using advanced process design, the cylinder is tightly sealed to ensure dust overflow during operation.
The cylinder is cast with high-quality steel to extend the service life.
The good effect of saving energy, strong durability, low cost of grinding
The machine output can be increased by 15-20% compared with the general cement mill. the power consumption is reduced by about 10%
Clinker ball mill Technical specifications:

Specification (m)	Capacity (t/h)	Rotating speed (r/min)	Grinding body (t)	Motor		Reducer		Weight (t)
				Model	Power (kW)	Model	Speed ratio
Φ1.2x4.5	1.4	30.3	5	YR250M-6	55	ZD30-8	4.481	13.1
Φ1.5x5.7	3.5	26.34	11	JR127-8	130	ZD40-7	4	25
Φ1.83x6.4	6	23.9	18	JR137-8	210	ZD60-8	4.5	35.3
Φ1.83x7	6.5	24.5	20	JR138-8	245	ZD60-8	4.5	37.2
Φ2x9	9.5-10	23.88	31	JR158-8	380	ZD70-8	4.5	58.4
Φ2.2x6.5	11	21.4	30	JRQ158-8/YR630-8	380	ZD70-9	5	46.2
Φ2.2x6.5	14 Closed circuit	21.4	30	JRQ158-8/YR630-8	380	ZD70-9	5	46.2
Φ2.2x7	12	21.4	30	JR158-8	380	ZD70-9	5	54
Φ2.2x7.5	13	21.4	32	JR158-8	380	ZD70-9	5	63
Φ2.2x8	14	21.4	37	JR158-8	380	ZD70-9	5	65
Φ2.2x9.5	14-16 Closed circuit	21.4	43	JR1510-8	475	ZD70-9	5	70
Φ2.2x13	16	20.3	55	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.3/99.96	114.4
Φ2.4x7	14-16 Closed circuit	20.4	36	JR1510-8	475	JDX450	5	67.9
02.4x8	16-17 Closed circuit	20.3	41	JR1512-8/Y180L-8	570/11	JD630/ZS82.5-7	6.333/99.96	87.2
Φ2.4x9	17-19 Closed circuit	20.3	46	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96	93.5
Φ2.4x10	18-19 Open circuit	20.3	50	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96	99.4
Φ2.4x11	19-21 Open circuit	20.3	60	YR630-8/1180/Y100L-8	630/11	JD630/ZS82.5-7	6.333/99.96	99.4
Φ2.4x12	25-27 Closed circuit	20.3	61	YR800-8/1180/Y100L-8	800/11	JD630/ZS82.5-7	6.333/99.96	112.7
Φ2.4x13	25-27 High fine open circuit	20.3	66	YR800-8/1180/Y100L-8	800/11	JD630/ZS82.5-7	6.333/99.96	131.1
Φ2.4x13	21-23 Open circuit	20.3	66	YR1000-8/1180/Y160M-4	1000/11	JD630/ZS82.5-7	6.333/99.96	130.4
Φ2.6x10	25-27 Closed circuit	20.3	60	YR800-8/1250	800	JD800	5.5	150.5
Φ2.6x13	27-29	19.1	80	YR1000-8/1180/Y160M-4	1000/11		5.5/280	169
Φ3x9	33-34 Closed circuit	19.6	79	YR1000-8/1180/Y160M-4	1000/11	NAL108/8/ZS110-19	8/280	156.5
Φ3x9	36.5 Closed circuit	17.6	79	YR118/61-8	1000	2x1250	42.163	121.13 Without motor
Φ3x11	35-40 Closed circuit	18.3	97	YR1250-8/1430/YR160M-4	1250/11	YNL1210	6.3	178
Φ3x11	47 Closed circuit	17.7	97	YR118/74-8	1250	ZI314	42.39	169
Φ3x12	38-40 Closed circuit	18.1	90	YR1250-8/1430	1250/11	JS1100-00	41.27	196.26
Φ3.2x11	40 Closed circuit	18	103	YR1400-8/1430/Y160M-4	1400/11	YNL1210/ZS110-19	12.35/28	186.1 Without motor
Φ3.5x11.5	65-70 Closed circuit	16.5	129	TYD143/49-8	2000	ZI370	36.239	138.3 Without motor
Φ3.5x11.5	50 Closed circuit	17.2	126	YR1800-8/1430/Y200L2-2	1800/37		43.02/318	252.27
Φ3.8x13 Double slipper	70-75 Closed circuit	16.6	170	YRKK800-8	2500	JS130/MFY250	44.9	203 Without motor
Φ3.8x13	60-62	16.3	170	YR2500-10/1730	2500	MFYX250		286
Φ4x13	65 Closed circuit	15.95	202	YRKK900-8	2800	JS130-8	46.7	264
Φ4.2x13	85 Closed circuit	16.3	224	YRKK900-8	3150	MFY320	47.8	250 Without motor

Clinker ball mill customer case :
Clinker ball mill delivery :
Manufacturing Facilities:
After-sales service:
1.Free repair and replacement
Within the warranty period, if the equipment malfunctions in the correct use, we will guarantee free repair and replacement of spare parts.
2.Supply spare parts
During the normal service life of the equipment, we will provide spare parts with reliable quality and reasonable price.
3.Remote diagnosis and on-site service
When the equipment malfunctions, our after-sales service engineers can diagnose the equipment by video and guide the on-site operators to troubleshoot the equipment. If the equipment fault still cannot be removed, We will arrange professional after-sales service engineers to remove the fault on site.

---
